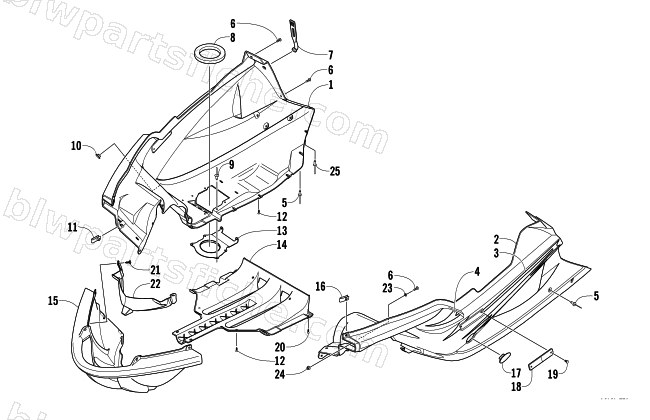

BELLY PAN ASSEMBLY
2003 FIRECAT 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-348 | BELLYPAN,RH-INJ MOLD-GREEN | 1 | $201.95 | |
| 1 | 2606-646 | BELLY PAN,RH-INJ MOLD-BLACK | 1 | $313.95 | |
| 1 | 2606-778 | BELLYPAN,RH-INJ MOLD-RED | 1 | $206.95 | |
| 2 | 2606-349 | BELLYPAN,LH-INJ MOLD-GREEN | 1 | $201.95 | |
| 2 | 2606-647 | BELLY PAN,LH-INJ MOLD-BLACK | 1 | $197.95 | |
| 2 | 2606-779 | BELLYPAN, LH-INJ MOLD-RED | 1 | $187.95 | |
| 3 | 4611-846 | DECAL,BELLY PAN-GRN LWR RH | 1 | $50.95 | |
| 3 | 4611-847 | DECAL,BELLY PAN-GRN LWR LH | 1 | $50.95 | |
| 3 | 4611-848 | DECAL,BELLY PAN-BLK LWR RH | 1 | $50.95 | |
| 3 | 4611-849 | DECAL,BELLY PAN-BLK LWR LH | 1 | $50.95 | |
| 3 | 4611-850 | DECAL,BELLY PAN-RED LWR RH | 1 | $66.95 | |
| 3 | 4611-851 | DECAL,BELLY PAN-RED LWR LH | 1 | $64.95 | |
| 4 | 4611-840 | DECAL,BELLY PAN-GRN UPR RH | 1 | $61.95 | |
| 4 | 4611-841 | DECAL,BELLY PAN-GRN UPR LH | 1 | $59.95 | |
| 4 | 4611-842 | DECAL,BELLY PAN-BLK UPR RH | 1 | $61.95 | |
| 4 | 4611-843 | DECAL,BELLY PAN-BLK UPR LH | 1 | $61.95 | |
| 4 | 4611-844 | DECAL,BELLY PAN-RED UPR RH | 1 | $61.95 | |
| 4 | 4611-845 | DECAL,BELLY PAN-RED UPR LH | 1 | $61.95 | |
| 5 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 6 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 7 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 8 | 1612-603 | SEAL,EXH OUTLET | 1 | $57.95 | |
| 9 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 10 | 3606-050 | PIN, RESONATOR MTG | 1 | $20.63 | |
| 11 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 1612-686 | DEFLECTOR,EXH-STAMPED | 1 | $122.95 | |
| 14 | 3606-085 | BELLY PAN,CENTER-BLK | 1 | $244.95 | |
| 15 | 4606-040 | BELLY PAN,FRT BUMPER-BLK | 1 | $232.95 | |
| 16 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 17 | 2606-650 | PANEL,CLUTCH ACCESS-BLACK | 1 | $32.95 | |
| 17 | 2606-775 | PANEL, CLUTCH ACCESS-RED | 1 | $17.95 | |
| 18 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 19 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 20 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 21 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 22 | 2606-911 | SCREEN,FRT BUMPER | 1 | $34.95 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 1623-066 | NUT,FLANGE-1/4-20 TOPLOCK-GD 5 Z&Y | 1 | $0.95 | |
| 25 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 |
