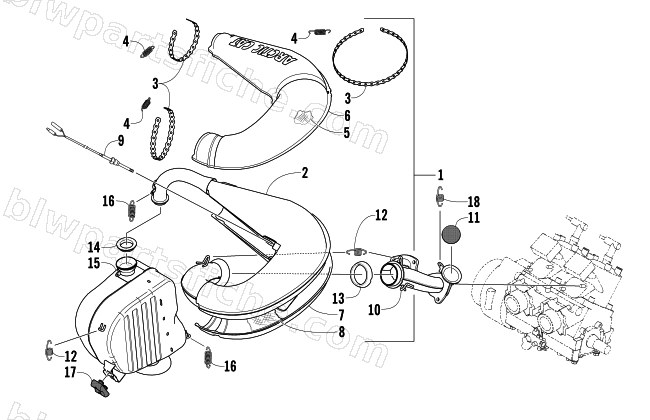

2003 Arctic Cat FIRECAT 500 — EXHAUST ASSEMBLY
2003 FIRECAT 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-927 | CHAMBER,EXP-FABR | 1 | $549.95 | |
| 2 | 0712-926 | CHAMBER,EXP-PTD BLK | 1 | $415.95 | |
| 3 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 3 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 4 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 5 | 1612-613 | PACKING,EXP CHAMBER-TOP | 1 | $13.95 | |
| 6 | 1612-658 | COVER,EXP CHAMBER-UPR | 1 | $167.95 | |
| 7 | 1612-657 | COVER,EXP CHAMBER-LWR | 1 | $309.95 | |
| 8 | 1612-614 | PACKING,EXP CHAMBER-BOTTOM | 1 | $13.95 | |
| 9 | 0630-145 | SENSOR,EXHAUST TEMP-1/4" DIA | 1 | $220.95 | |
| 10 | 0712-972 | MANIFOLD,EXHAUST-MACH | 1 | $201.95 | |
| 11 | 1612-678 | BALL, 1 7/8" DIA-MANIFOLD MOUNT | 1 | $32.95 | |
| 12 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 13 | 1612-014 | GASKET,EXHAUST HEADPIPE | 1 | $37.95 | |
| 14 | 0612-693 | GASKET,EXHAUST JOINT-RESONATOR | 1 | $29.95 | |
| 15 | 0712-725 | RESONATOR,EXHAUST-PTD BLK | 1 | $767.95 | |
| 16 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 17 | 1612-685 | MOUNT,RUBBER RESONATOR STANDOFF | 1 | $4.26 | |
| 18 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 |
