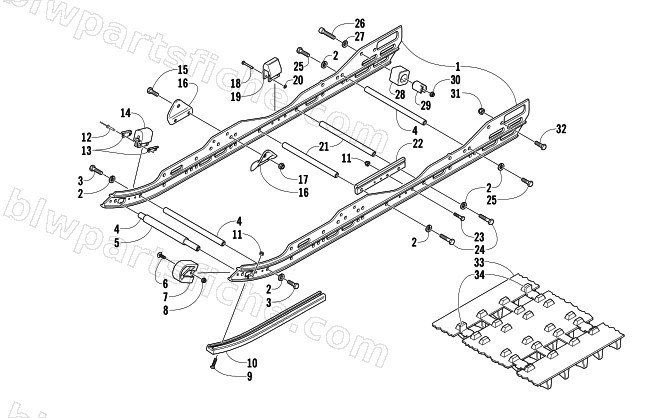

2003 Arctic Cat FIRECAT 500 — SLIDE RAIL AND TRACK ASSEMBLY
2003 FIRECAT 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7997-015 | SUSPENSION,REAR-MFG ASSY | 1 | $3,886.95 | |
| 1 | 2604-697 | KIT, RAIL-'03 FIRECAT | 1 | $465.95 | |
| 2 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 3 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 4 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 5 | 2604-281 | SPACER,ALUMINUM-LIMITER STRAPS -5.38" | 1 | $13.73 | |
| 6 | 8007-581 | SCREW, MACH-THCR 1/4-20X.87 G2 Z&Y | 1 | $0.65 | |
| 7 | 2604-507 | NOSEPIECE,RAIL-TAPERED | 1 | $15.11 | |
| 8 | 1623-066 | NUT,FLANGE-1/4-20 TOPLOCK-GD 5 Z&Y | 1 | $0.95 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 13 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 14 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 15 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 16 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 17 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 18 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 20 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 21 | 2604-367 | AXLE,ALUM-RAIL BRACE | 1 | $27.95 | |
| 22 | 2604-368 | BRACE,RAIL-RH | 1 | $60.95 | |
| 22 | 2604-369 | BRACE,RAIL-LH | 1 | $44.95 | |
| 23 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 25 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 26 | 8005-676 | SCREW, CAP-HSH 3/8-16X1.75 Z&Y | 1 | $1.95 | |
| 27 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 28 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 29 | 2604-046 | BUSHING, REAR ARM COUPLER | 1 | $29.95 | |
| 30 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 31 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 32 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 33 | 1602-444 | TRACK,13.5X128X1" | 1 | $829.95 | |
| 34 | 1602-268 | R/B 1602-134 | 1 | $3.95 |
