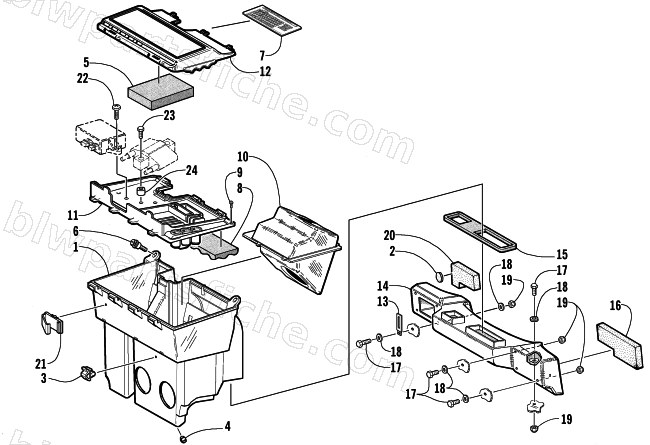

2003 Arctic Cat MOUNTAIN CAT 570 — AIR SILENCER ASSEMBLY
2003 MOUNTAIN CAT 570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-536 | SILENCER, AIR-570 F/C - FAB | 1 | $120.95 | |
| 2 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 3 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 4 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 5 | 0617-411 | FOAM,TOOL TRAY | 1 | $14.95 | |
| 6 | 0623-780 | SCREW,HEX SHOULDER - 10/32 | 1 | $16.49 | |
| 7 | 4611-815 | DECAL,JET CHART-03 MC 570 | 1 | $33.95 | |
| 8 | 0617-393 | FOAM,AIR SILENCER-TOP LID | 1 | $14.95 | |
| 9 | 0623-882 | SCREW, SELF,TAP-PHPNH#10X5/8TYPE AB Z&Y | 1 | $0.15 | |
| 10 | 1670-061 | RESONATOR, Q-WAVE-INLET-44MM | 1 | $41.95 | |
| 11 | 1670-197 | COVER, AIR SILENCER,UNROUTED | 1 | $41.95 | |
| 12 | 1670-049 | COVER, TOOL TRAY | 1 | $61.95 | |
| 13 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 14 | 1670-438 | PLENUM,AIR SILENCER-L/W-EFI-ROUTED | 1 | $107.95 | |
| 15 | 0617-245 | SEAL, AIR BOX/PLENUM | 1 | $6.06 | |
| 16 | 0617-270 | FOAM,PLENUM-INTAKE | 1 | $12.35 | |
| 17 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 18 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 19 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 20 | 0617-434 | FOAM,PLENUM-INTAKE-RH | 1 | $8.95 | |
| 21 | 0623-792 | CLIP,WIRE/HOSE PUSH MOUNT | 1 | $3.99 | |
| 23 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 24 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 |
