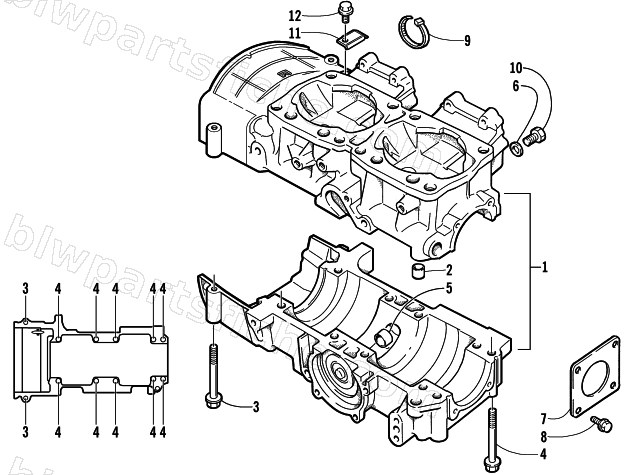

CRANKCASE ASSEMBLY
2003 MOUNTAIN CAT 600 EFI ( 136)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-664 | CRANKCASE | 1 | $1,817.95 | |
| 2 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 3 | 3004-881 | BOLT, 8X75 | 1 | $6.89 | |
| 4 | 3005-514 | BOLT,(10X100) | 1 | $7.95 | |
| 5 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 6 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 7 | 3004-775 | PLATE,OIL SEAL 440L/C | 1 | $28.95 | |
| 8 | 3007-392 | BOLT | 1 | $3.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 | |
| 11 | 0608-117 | BRKT,GROUND WIRE-ENGINE | 1 | $13.95 | |
| 12 | 3007-371 | BOLT (6X12) | 1 | $3.16 |
