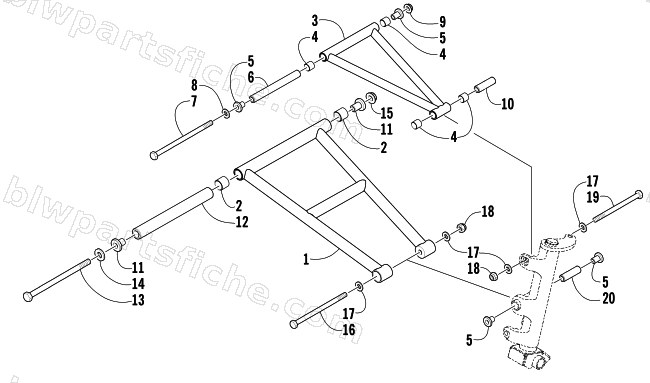

A-ARM ASSEMBLY
2003 MOUNTAIN CAT 600 EFI ( 144)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-456 | A-ARM,LOWER-40"-FAB | 1 | $167.95 | |
| 2 | 2603-196 | BUSHING,PLASTIC-.927 OD X .76 ID | 1 | $13.73 | |
| 3 | 1703-067 | A-ARM,UPPER-40"-FAB | 1 | $159.95 | |
| 4 | 1603-915 | BUSHING, PLASTIC-.625 ID | 1 | $5.65 | |
| 5 | 1603-244 | AXLE,PWD METAL(0603-061) | 1 | $2.06 | |
| 6 | 0603-692 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $17.87 | |
| 7 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 8 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 9 | 0623-661 | NUT,CROWNLOCK FLANGE 3/8-16 UNC Z&Y | 1 | $1.23 | |
| 10 | 0603-864 | TUBE, AXLE | 1 | $17.87 | |
| 11 | 1603-397 | AXLE,NON-SERRATED-LOWER ARM PIVOT | 1 | $3.02 | |
| 12 | 0603-693 | TUBE,AXLE-LOWER PIVOT | 1 | $22.01 | |
| 14 | 0623-663 | WASHER,FLAT 1.00X.453X.164 Z&Y | 1 | $3.57 | |
| 15 | 0623-660 | NUT,CROWNLOCK FLANGE 7/16-14 UNC Z&Y | 1 | $1.95 | |
| 16 | 0623-414 | SCREW,CAP HH 3/8-16 X 4.75 GR8 Z&Y | 1 | $4.68 | |
| 17 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 18 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 19 | 8013-233 | SCREW,CAP-HH 3/8-16 X 3.50 GR8 Z&Y | 1 | $3.16 | |
| 20 | 0603-639 | TUBE,AXLE-LOWER ARM | 1 | $5.09 |
