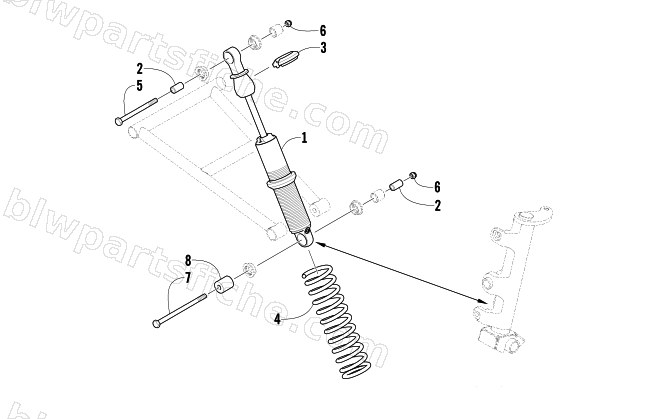

2003 Arctic Cat MOUNTAIN CAT 800 EFI ( 144) — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2003 MOUNTAIN CAT 800 EFI ( 144)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-090 | SHOCK,SKI-ASSY-FW-40" | 1 | $388.95 | |
| 2 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 3 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 1703-216 | SPRING,SHOCK-SKI (110#X10")-PTD GRN | 1 | $86.95 | |
| 4 | 1703-264 | SPRING,SHOCK-SKI (110#X10")-PTD RED | 1 | $89.95 | |
| 6 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 7 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 8 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 |
