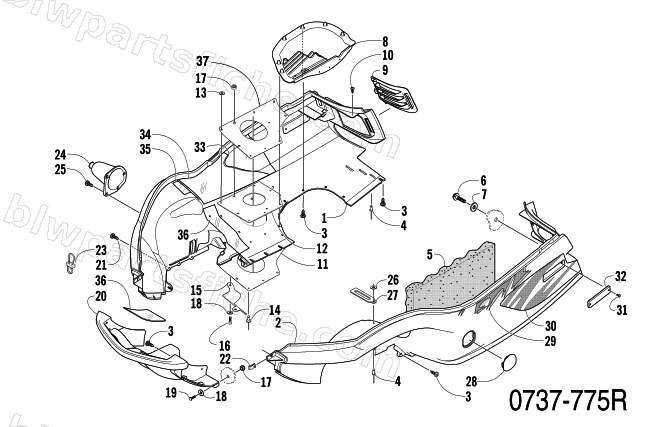

2003 Arctic Cat MOUNTAIN CAT 800 EFI () — BELLY PAN AND FRONT BUMPER ASSEMBLY
2003 MOUNTAIN CAT 800 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1706-389 | BELLYPAN,LH-SILVER-ROUTED | 1 | $237.95 | |
| 3 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 4 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 5 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 6 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 7 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 10 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 11 | 0712-967 | SHIELD,HEAT-EXHAUST OUTLET-PTD BLK | 1 | $9.95 | |
| 12 | 1612-680 | SEAL,EXHAUST OUTLET | 1 | $40.95 | |
| 13 | 0623-290 | WASHER,FLAT-#8 X 5/8 X .0747 | 1 | $0.95 | |
| 14 | 8061-410 | RIVET,BLIND-LF AA58 PLAIN | 1 | $0.95 | |
| 15 | 1612-682 | DEFLECTOR,EXHAUST OUTLET | 1 | $18.95 | |
| 16 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 17 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 19 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 20 | 2606-737 | BUMPER,FRONT-PEWTER-ROUTED | 1 | $145.95 | |
| 21 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 22 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 23 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 | |
| 24 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 24 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 25 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 26 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 27 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 29 | 4611-546 | DECAL, BELLYPAN-UPPER-RH (BLK/GRN) | 1 | $65.95 | |
| 29 | 4611-547 | DECAL, BELLYPAN-UPPER-LH (BLK/GRN) | 1 | $65.95 | |
| 29 | 4611-542 | DECAL, BELLYPAN-UPPER-RH (BLK/RED) | 1 | $35.95 | |
| 29 | 4611-543 | DECAL, BELLYPAN-UPPER-LH (BLK/RED) | 1 | $33.95 | |
| 30 | 4611-540 | DECAL, BELLYPAN-RH-LOWER | 1 | $171.95 | |
| 30 | 4611-541 | DECAL, BELLYPAN-LH-LOWER | 1 | $36.95 | |
| 31 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 32 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 33 | 2606-375 | FOIL, PROTECTIVE,UPPER REAR | 1 | $15.11 | |
| 34 | 2606-376 | FOIL, PROTECTIVE,UPPER FRONT | 1 | $27.95 | |
| 35 | 2606-387 | FOIL,PROTECTIVE-LWR FRONT | 1 | $29.95 | |
| 36 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 37 | 1712-027 | SHIELD,HEAT-EXHAUST OUTLET-PTD BLK | 1 | $19.95 |
