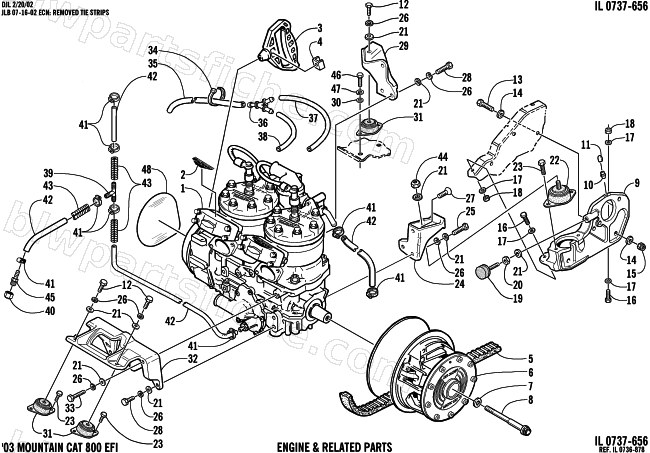

ENGINE AND RELATED PARTS
2003 MOUNTAIN CAT 800 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-344 | ENGINE,W/O EFI COMP-'03 800 | 1 | $4,026.95 | |
| 2 | 3611-967 | DECAL, APV | 1 | $19.95 | |
| 3 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 4 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 5 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 6 | 0746-836 | CLUTCH,DRIVE-UNCAL-8.25 33MM/D | 1 | $668.95 | |
| 7 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 8 | 0623-913 | BOLT, CLUTCH - 1/2-20 X 5.92 - 12 PT | 1 | $17.87 | |
| 9 | 0708-400 | BRKT,BEARING SUPPORT-ASSY | 1 | $94.95 | |
| 10 | 0623-899 | ZERK, GREASE DRIVE | 1 | $2.88 | |
| 11 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 12 | 8002-221 | SCREW,CAP-HH 3/8-16 X.875 G5 Z&Y | 1 | $0.95 | |
| 13 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 14 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 17 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 18 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 0608-355 | R/B 0608-784 | 1 | $19.95 | |
| 20 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 21 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 22 | 0708-145 | MOUNT,ENGINE-ASSY | 1 | $40.95 | |
| 23 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 24 | 0708-158 | BRKT,ENG MTG-LH REAR-MACH | 1 | $85.95 | |
| 25 | 8005-674 | SCREW, CAP-HSH 3/8-16X1.25 Z&Y | 1 | $1.37 | |
| 26 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 27 | 0623-881 | SCREW, MACH,HSFH 3/8-16X1.00 Z&Y | 1 | $1.37 | |
| 28 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 29 | 0708-157 | BRKT, ENG,MTG-RH REAR MACH | 1 | $85.95 | |
| 30 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 31 | 0608-645 | MOUNT,ENGINE | 1 | $113.95 | |
| 32 | 0708-116 | BRKT,ENG MTG-FRONT-MACH | 1 | $121.95 | |
| 33 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 34 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 35 | 0610-535 | HOSE,DRAIN-VEV (EXIT) | 1 | $20.63 | |
| 36 | 0670-875 | FITTING,'Y' (1/2 X 1/2 X 1/2) | 1 | $19.25 | |
| 37 | 0610-364 | HOSE,DRAIN-VEV (PTO) | 1 | $19.25 | |
| 38 | 0610-363 | HOSE,DRAIN-VEV (MAG) | 1 | $15.95 | |
| 39 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 | |
| 40 | 1670-303 | CAP, DRAIN-2002 800 L/C | 1 | $2.88 | |
| 41 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 42 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 43 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 44 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 45 | 0623-976 | ADAPTER, DRAIN-2002 800 L/C | 1 | $2.75 | |
| 46 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 47 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 48 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 |
