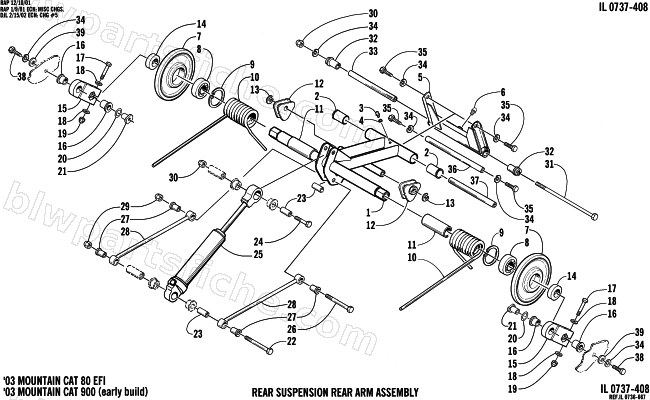

2003 Arctic Cat MOUNTAIN CAT 800 EFI () — REAR SUSPENSION REAR ARM ASSEMBLY
2003 MOUNTAIN CAT 800 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-783 | ARM,IDLER-L/W-FAB | 1 | $236.95 | |
| 2 | 2604-128 | BUSHING,FLARED-PLASTIC | 1 | $14.95 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 5 | 0704-829 | ARM,REAR-MACH (PLATINUM) | 1 | $66.95 | |
| 6 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 7 | 1604-690 | WHEEL,IDL-5.63 W/1" ID(NO INSR) | 1 | $53.95 | |
| 8 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 9 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 10 | 2604-044 | SPRING, SUBFRAME-RH (.452)-PTD BLK | 1 | $53.95 | |
| 10 | 2604-045 | SPRING, SUBFRAME-LH (.452)-PTD BLK | 1 | $67.95 | |
| 11 | 0114-254 | SLEEVE,SPRING | 1 | $6.95 | |
| 12 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 12 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 13 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 14 | 1604-507 | SPACER,OFFSET ARM-HEX SHAFT | 1 | $12.35 | |
| 15 | 0704-981 | OFFSET,ARM (HEX)-ASSY | 1 | $53.95 | |
| 16 | 1604-202 | BUSHING,FLARED-BRONZE{.750 ID} | 1 | $15.11 | |
| 17 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 18 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 19 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 20 | 1604-187 | WASHER, OFFSET ARM | 1 | $2.06 | |
| 21 | 1604-181 | AXLE,OFFSET ARM-POWDER METAL | 1 | $14.95 | |
| 22 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 23 | 1604-139 | SLEEVE,SHOCK EYELET-POWDER METAL | 1 | $2.06 | |
| 25 | 0704-802 | SHOCK,REAR ARM-ASSY-FW | 1 | $445.95 | |
| 26 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 27 | 1604-498 | AXLE,LINK-FLANGED(99 PRO) | 1 | $15.11 | |
| 28 | 0704-350 | LINK,REAR SHOCK-PTD BLK | 1 | $27.95 | |
| 29 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 30 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 31 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 32 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 34 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 35 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 36 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 37 | 2604-176 | AXLE,ALUM-.750 X 6.817-MACH | 1 | $197.95 | |
| 38 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 39 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
