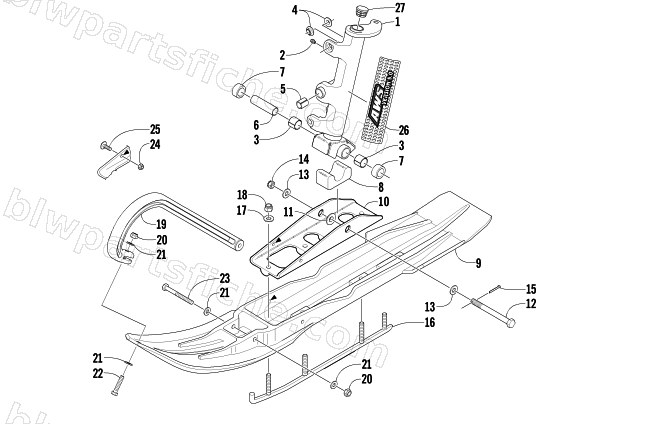

2003 Arctic Cat MOUNTAIN CAT 800 EFI () — SKI AND SPINDLE ASSEMBLY
2003 MOUNTAIN CAT 800 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-076 | SPINDLE FAB-RH-MILLED (MC) | 1 | $247.95 | |
| 1 | 1703-077 | SPINDLE FAB-LH-MILLED (MC) | 1 | $305.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 4 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 5 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 6 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 7 | 1603-908 | SPACER,SPINDLE-PLASTIC SKI | 1 | $13.73 | |
| 8 | 1603-960 | DAMPER,SKI-RUBBER | 1 | $12.35 | |
| 10 | 1703-079 | SADDLE,SKI-W/HOLES-ASSY | 1 | $90.95 | |
| 11 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 12 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 13 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 14 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 15 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 16 | 1703-003 | SKAG, LONG-4'CRB/HDWELD,PTD BLK | 1 | $65.95 | |
| 17 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 18 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 19 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 20 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 22 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 23 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 | |
| 24 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 26 | 4611-636 | DECAL,SPINDLE-RH (BLK/GRN) | 1 | $37.95 | |
| 26 | 4611-637 | DECAL,SPINDLE-LH (BLK/GRN) | 1 | $39.95 | |
| 26 | 4611-638 | DECAL,SPINDLE-RH (BLK/RED) | 1 | $42.95 | |
| 26 | 4611-639 | DECAL,SPINDLE-LH (BLK/RED) | 1 | $40.95 | |
| 27 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 |
