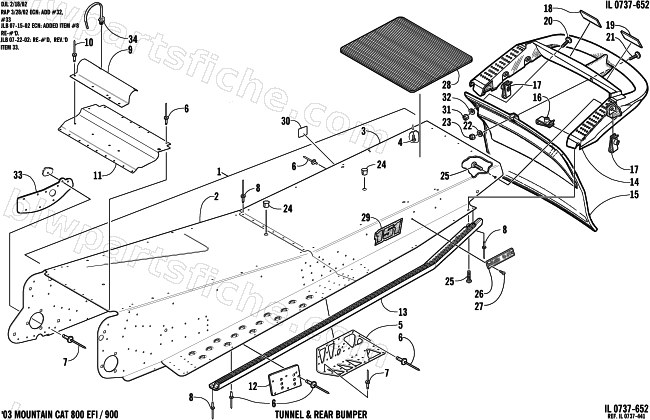

2003 Arctic Cat MOUNTAIN CAT 800 EFI () — TUNNEL AND REAR BUMPER
2003 MOUNTAIN CAT 800 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-334 | TUNNEL,S/P ASSY-'03 MC 144" L/C | 1 | $987.95 | |
| 1 | 1718-564 | TUNNEL,S/P ASSY-'04 MC 151 | 1 | $703.95 | |
| 2 | 3606-307 | BODY,FRONT-L/C-FORMED | 1 | $320.95 | |
| 3 | 3606-309 | BODY, REAR-144"-FORMED | 1 | $314.95 | |
| 3 | 3606-311 | BODY,REAR-151"-FORMED | 1 | $464.95 | |
| 4 | 1623-078 | STUD,SELF-CLINCH 1/4-20X 1/2 HIGH TORQ | 1 | $1.95 | |
| 5 | 1706-918 | BRACKET,MTG-REAR SUSPENSION-RH-MACH | 1 | $99.95 | |
| 5 | 1706-917 | BRACKET,MTG-REAR SUSPENSION-LH-MACH | 1 | $99.95 | |
| 6 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 6 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 6 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 6 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 7 | 8060-448 | RIVET,BLIND-DH AS56 PL | 1 | $0.40 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 0607-751 | BRKT,PROTECTOR-MAIN HARNESS | 1 | $17.95 | |
| 10 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 11 | 2606-849 | COVER,DRIVEN SHAFT-FORMED | 1 | $97.95 | |
| 12 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 13 | 2606-510 | ROLL, TUNNEL-RH-144"-FORMED | 1 | $72.95 | |
| 13 | 2606-511 | ROLL, TUNNEL-LH-144"-FORMED | 1 | $74.95 | |
| 13 | 2606-420 | ROLL,TUNNEL-151"RH-FORMED | 1 | $74.95 | |
| 13 | 2606-419 | ROLL,TUNNEL-151"LH-FORMED | 1 | $64.95 | |
| 14 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 15 | 2606-460 | SNOWFLAP, LONG | 1 | $140.95 | |
| 15 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 16 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 17 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 18 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 19 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 20 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 21 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 25 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 26 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 27 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 28 | 2606-134 | PAD, RUBBER | 1 | $36.95 | |
| 29 | 4611-751 | DECAL,TUNNEL-"144" (BLK/GRN) | 1 | $26.95 | |
| 29 | 4611-752 | DECAL,TUNNEL-"144" (BLK/RED) | 1 | $29.95 | |
| 29 | 4611-753 | DECAL,TUNNEL-"151" (BLK/GRN) | 1 | $26.95 | |
| 29 | 4611-754 | DECAL,TUNNEL-"151" (BLK/RED) | 1 | $26.95 | |
| 30 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 31 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 32 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 33 | 2606-905 | PLATE,BACKING-DROPCASE GUARD | 1 | $27.95 | |
| 34 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
