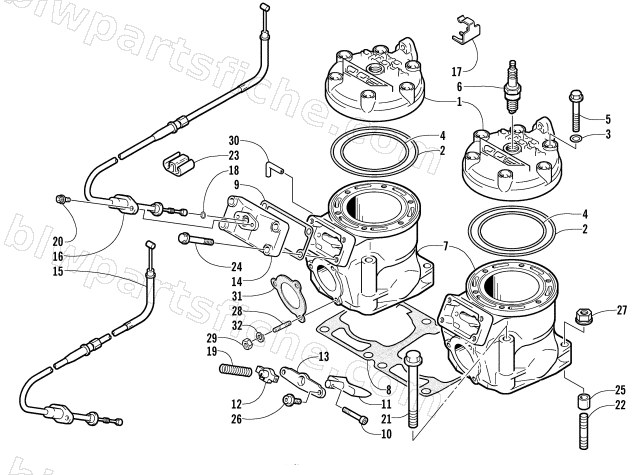

CYLINDER AND HEAD ASSEMBLY
2003 MOUNTAIN CAT 900 ( 144)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-390 | HEAD,CYL 860 L/C | 1 | $303.95 | |
| 2 | 3004-081 | O-RING,HEAD-OUTER | 1 | $23.39 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3005-854 | O-RING | 1 | $30.95 | |
| 5 | 3006-538 | BOLT,CYL HEAD | 1 | $5.65 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3006-454 | CYLINDER,MTN CAT 900 | 1 | $939.29 | |
| 8 | 3005-951 | GASKET, CYL (REPLACES 2 OF 3005-858) | 1 | $65.95 | |
| 9 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 10 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 11 | 3006-392 | VALVE, EXHAUST 860 L/C | 1 | $307.95 | |
| 12 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 13 | 3005-861 | PLATE, EXHAUST VALVE | 1 | $43.95 | |
| 14 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 15 | 3006-695 | CABLE,EXHAUST VALVE ( PTO ) | 1 | $117.95 | |
| 16 | 3006-694 | CABLE,EXHAUST VALVE ( MAGNETO ) | 1 | $102.95 | |
| 17 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 18 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 19 | 3005-945 | SPRING | 1 | $6.95 | |
| 20 | 3007-433 | BOLT | 1 | $3.16 | |
| 21 | 3005-846 | BOLT, 10X115 | 1 | $12.35 | |
| 22 | 3005-847 | BOLT, STUD | 1 | $9.59 | |
| 23 | 3005-808 | CLAMP | 1 | $6.95 | |
| 24 | 3007-381 | BOLT | 1 | $3.16 | |
| 25 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 26 | 3006-389 | BOLT,6X16 '02 860 L/C | 1 | $3.95 | |
| 27 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 28 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 29 | 3007-416 | NUT | 1 | $2.75 | |
| 30 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 | |
| 31 | 3005-880 | GASKET, EXHAUST | 1 | $19.25 | |
| 32 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 |
