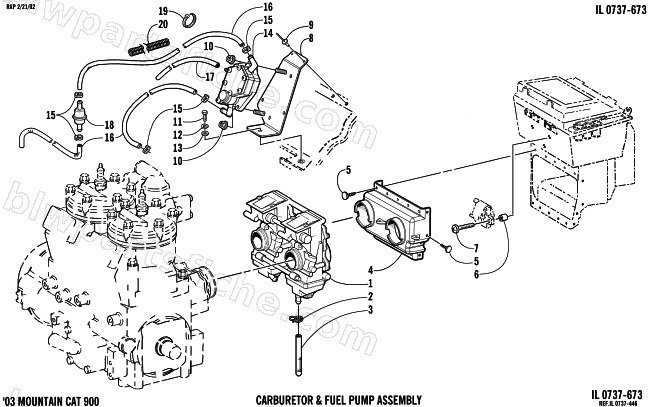

2003 Arctic Cat MOUNTAIN CAT 900 ( 151) — CARBURETOR AND FUEL PUMP ASSEMBLY
2003 MOUNTAIN CAT 900 ( 151)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-304 | CARB, TM40-B253-HI ALT RACK STYLE | 1 | $1,218.95 | |
| 2 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 3 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 4 | 1670-306 | BOOT, CARB | 1 | $112.95 | |
| 5 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 6 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 7 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 8 | 0770-497 | PLATE,MTG-FUEL PUMP-ASSY | 1 | $20.95 | |
| 9 | 0623-149 | RIVET,CHERRY SSPQ56 | 1 | $1.95 | |
| 10 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 | |
| 11 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 12 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 16 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 16 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 17 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 18 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 19 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 20 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 |
