2003 Arctic Cat MOUNTAIN CAT 900 EARLY BUILD — BELT GUARD ASSEMBLY
2003 MOUNTAIN CAT 900 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

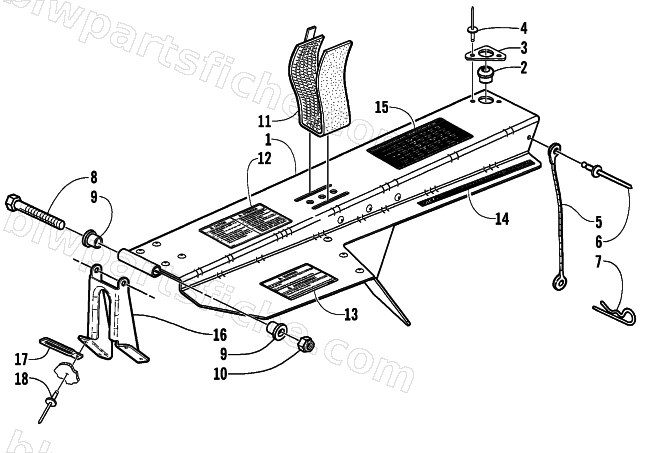

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-488 | GUARD, CLUTCH ASSY W/ GROMMET & RETAINE | 1 | $82.95 | |
| 2 | 0607-549 | BUSHING, BELT GUARD | 1 | $3.02 | |
| 3 | 0607-550 | PLATE, BUSHING-BELT GUARD-PTD BLK | 1 | $12.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 6 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 7 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 8 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 9 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 12 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 13 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 14 | 3611-969 | DECAL, "ACT-ROLLER DRIVEN CLUTCH" | 1 | $89.95 | |
| 15 | 4611-548 | DECAL,CLUTCHING-2003 MC 900 SE | 1 | $39.95 | |
| 16 | 0707-707 | BRKT, MTG - GUARD-PTD BLK | 1 | $37.95 | |
| 17 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 18 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 |
