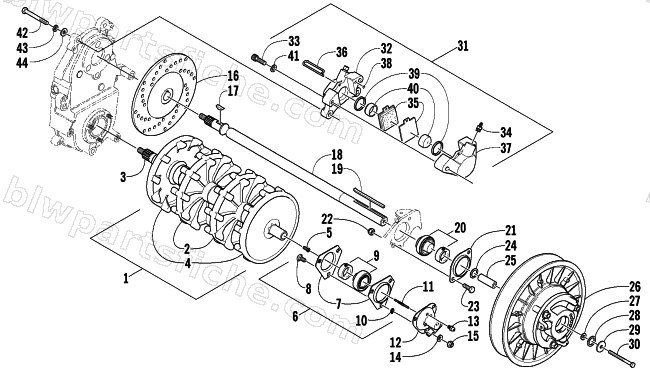

2003 Arctic Cat MOUNTAIN CAT 900 EARLY BUILD — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2003 MOUNTAIN CAT 900 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-071 | TRACK DRIVE,10 TOOTH-1.063 HEX-ASSY | 1 | $390.95 | |
| 2 | 1602-436 | SPROCKET,DRIVE-10T (7.94")-1" BAND | 1 | $73.95 | |
| 3 | 0602-958 | SHAFT, DRIVE | 1 | $326.95 | |
| 4 | 1602-292 | SPROCKET,DRIVE-10 TOOTH-HALF | 1 | $59.95 | |
| 5 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 6 | 0702-399 | PLATE, FLANGE-BEARING -ASSY | 1 | $87.95 | |
| 7 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 8 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 9 | 1602-234 | BEARING, 1 W/LOCK-(SMALL RACE) | 1 | $83.95 | |
| 10 | 0623-810 | RING,SOLDER-5/16 | 1 | $4.95 | |
| 11 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 12 | 0720-005 | ADAPTER,DRIVE-SPEEDOMETER-FAB. 47 | 1 | $96.95 | |
| 13 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 14 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 1602-205 | DISC, BRAKE-8-5/8 | 1 | $174.95 | |
| 17 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 18 | 0702-266 | SHAFT,DRIVEN-PTD BLK | 1 | $216.95 | |
| 19 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 20 | 1602-099 | BEARING, RELUBRICATABLE - 1.00 DRIVEN SH | 1 | $54.95 | |
| 21 | 0602-892 | FLANGE,BRG-TWO MTG HOLE | 1 | $16.95 | |
| 22 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 23 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 24 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 24 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 25 | 0648-066 | SHAFT, STUB 2.100" | 1 | $28.95 | |
| 26 | 0726-114 | CLUTCH, DRIVEN (RED/WHITE,55) | 1 | $671.95 | |
| 27 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 28 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 30 | 8002-142 | SCREW,CAP-HH 5/16-18 X3.25 G5 Z&Y | 1 | $0.65 | |
| 31 | 0602-829 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $437.95 | |
| 33 | 8005-679 | SCREW, CAP-HSH 3/8-16X2.50 Z&Y | 1 | $3.85 | |
| 34 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 35 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 | |
| 38 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 39 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 40 | 0602-708 | PISTON | 1 | $81.95 | |
| 41 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 42 | 8002-316 | SCREW,CAP-HH 7/16-14 X1.75 G5 Z&Y | 1 | $0.75 | |
| 43 | 8051-307 | WASHER,SPR LOCK-7/16 .440X.784X.133 Z&Y | 1 | $0.40 | |
| 44 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 |
