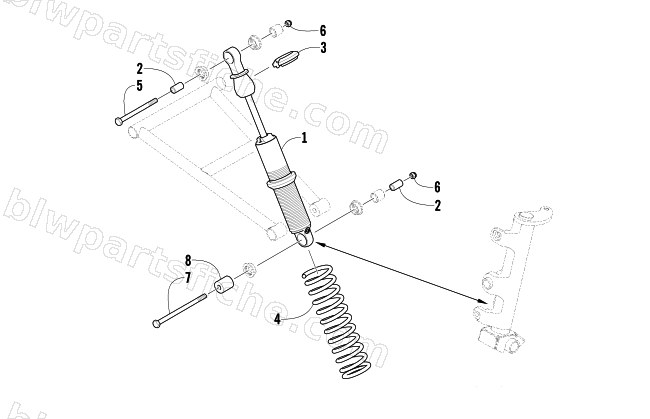

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2003 MOUNTAIN CAT 900 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-090 | SHOCK,SKI-ASSY-FW-40" | 1 | $388.95 | |
| 2 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 3 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 0703-812 | SPRING,COMPRESSION - GREEN | 1 | $99.95 | |
| 6 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 7 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 8 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 |
