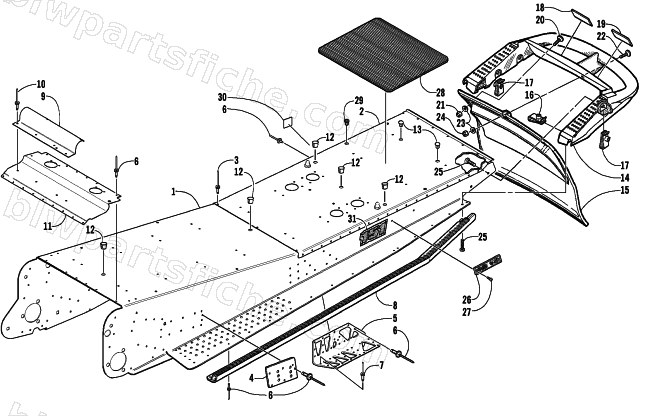

2003 Arctic Cat MOUNTAIN CAT 900 EARLY BUILD — TUNNEL AND REAR BUMPER
2003 MOUNTAIN CAT 900 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-278 | TUNNEL,S/P ASSY-03 MC 900 | 1 | $789.95 | |
| 2 | 2606-790 | PLATE,END-TUNNEL-151"(03 MC) | 1 | $172.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 4 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 5 | 1706-918 | BRACKET,MTG-REAR SUSPENSION-RH-MACH | 1 | $99.95 | |
| 5 | 1706-917 | BRACKET,MTG-REAR SUSPENSION-LH-MACH | 1 | $99.95 | |
| 6 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 6 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 6 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 6 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 7 | 8060-448 | RIVET,BLIND-DH AS56 PL | 1 | $0.40 | |
| 8 | 2606-420 | ROLL,TUNNEL-151"RH-FORMED | 1 | $74.95 | |
| 8 | 2606-419 | ROLL,TUNNEL-151"LH-FORMED | 1 | $64.95 | |
| 9 | 0607-751 | BRKT,PROTECTOR-MAIN HARNESS | 1 | $17.95 | |
| 10 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 11 | 2606-808 | COVER,DRIVEN SHAFT-FORMED | 1 | $111.95 | |
| 12 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 14 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 15 | 2606-460 | SNOWFLAP, LONG | 1 | $140.95 | |
| 15 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 16 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 17 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 18 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 19 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 20 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 26 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 27 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 28 | 2606-134 | PAD, RUBBER | 1 | $36.95 | |
| 29 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 30 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 31 | 4611-753 | DECAL,TUNNEL-"151" (BLK/GRN) | 1 | $26.95 |
