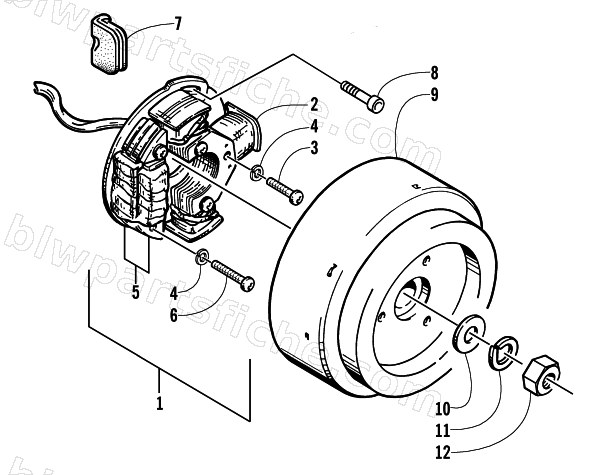

MAGNETO
2003 PANTERA 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-833 | STATOR | 1 | $785.95 | |
| 2 | 3003-013 | COIL ASSEMBLY, LIGHTING | 1 | $148.95 | |
| 3 | 3007-848 | SCREW,5X30 | 1 | $2.75 | |
| 4 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 5 | 3004-834 | COIL, PRIMARY FROM(3003-681 ) | 1 | $266.95 | |
| 6 | 3007-843 | SCREW,M5X35 | 1 | $2.75 | |
| 7 | 3003-795 | GROMMET,MAGNETO LEAD WIRE | 1 | $20.63 | |
| 8 | 3004-893 | BOLT, 6 X 25 | 1 | $16.49 | |
| 9 | 3005-950 | FLYWHEEL | 1 | $1,154.95 | |
| 10 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 11 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 12 | 3007-556 | NUT | 1 | $3.95 |
