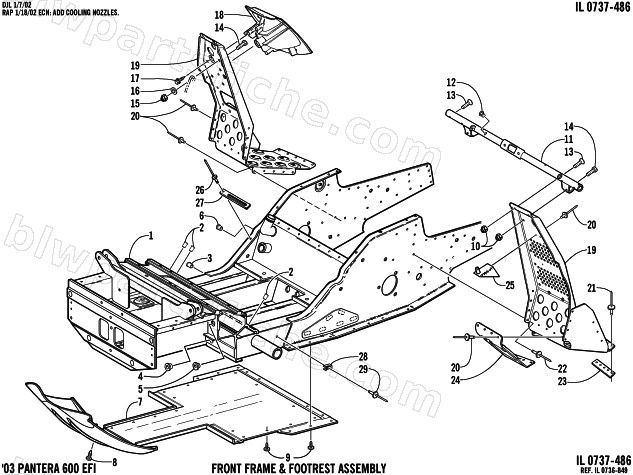

2003 Arctic Cat PANTERA 600 EFI ESR — FRONT FRAME AND FOOTREST ASSEMBLY
2003 PANTERA 600 EFI ESR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-617 | CHASSIS, FRT END-PTD-S/P ASSY | 1 | $1,240.95 | |
| 2 | 0623-699 | INSERT,THREADED-.375 X 16 (ALS4-616-312) | 1 | $3.02 | |
| 3 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 4 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 6 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 7 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0705-866 | SUPPORT,STEERING-S/P ASSY | 1 | $89.95 | |
| 12 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 13 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 14 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 15 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 18 | 1706-373 | CUP,RECOIL ROPE W/REV-BLK CHERRY | 1 | $37.95 | |
| 19 | 1706-884 | FOOTREST, RH-PTD BLK(2606-444) | 1 | $130.95 | |
| 19 | 2706-113 | FOOTREST,W/HOLES-LH-PTD BLK | 1 | $130.95 | |
| 20 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 21 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 22 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 23 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 24 | 1706-886 | PLATE,BACK-FTREST-RH-BLK(2606-458) | 1 | $19.95 | |
| 24 | 1706-887 | PLATE,BACK-FTREST-LH-BLK(2606-459) | 1 | $19.95 | |
| 25 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 26 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 27 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 28 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 29 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 |
