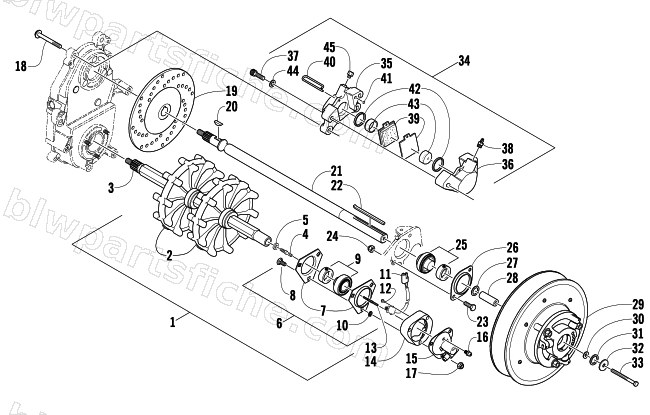

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2003 PANTERA 600 EFI ESR ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-076 | TRACK DRIVE/MAGNET ASSY | 1 | $364.95 | |
| 2 | 1602-200 | SPROCKET, DRIVE 9T 7.150(1/2"BAND) | 1 | $56.95 | |
| 3 | 1602-324 | SHAFT, DRIVE-HEX | 1 | $324.95 | |
| 5 | 0620-272 | MAGNET, RING - REMOTE START | 1 | $5.95 | |
| 6 | 0702-410 | PLATE,FLANGE-BEARING-ASSY | 1 | $117.95 | |
| 7 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 8 | 8011-136 | BOLT,CRG 5/16-18X1.75 GR1 Z&Y | 1 | $1.23 | |
| 9 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 10 | 0623-810 | RING,SOLDER-5/16 | 1 | $4.95 | |
| 11 | 0630-008 | SWITCH,MAGNETIC CARB ASSY | 1 | $63.95 | |
| 12 | 0623-137 | SCREW,TAPTITE-HWH 6-32X.313 Z&Y | 1 | $0.32 | |
| 13 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 14 | 0745-191 | HOUSING, MOTION SENSOR-MACH | 1 | $51.95 | |
| 15 | 0720-005 | ADAPTER,DRIVE-SPEEDOMETER-FAB. 47 | 1 | $96.95 | |
| 16 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 17 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 18 | 8020-315 | SCREW,CAP-HFH 7/16-14 X1.50 G5 Z&Y | 1 | $2.75 | |
| 19 | 1602-205 | DISC, BRAKE-8-5/8 | 1 | $174.95 | |
| 20 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 21 | 0702-266 | SHAFT,DRIVEN-PTD BLK | 1 | $216.95 | |
| 22 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 23 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 24 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 25 | 1602-099 | BEARING, RELUBRICATABLE - 1.00 DRIVEN SH | 1 | $54.95 | |
| 26 | 0602-892 | FLANGE,BRG-TWO MTG HOLE | 1 | $16.95 | |
| 27 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 27 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 28 | 0648-066 | SHAFT, STUB 2.100" | 1 | $28.95 | |
| 29 | 0726-130 | CLUTCH, DRIVEN,RW/51 | 1 | $731.95 | |
| 30 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 31 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 33 | 8002-142 | SCREW,CAP-HH 5/16-18 X3.25 G5 Z&Y | 1 | $0.65 | |
| 34 | 0602-829 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $437.95 | |
| 37 | 8005-679 | SCREW, CAP-HSH 3/8-16X2.50 Z&Y | 1 | $3.85 | |
| 38 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 39 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 | |
| 41 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 42 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 43 | 0602-708 | PISTON | 1 | $81.95 | |
| 44 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 45 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 |
