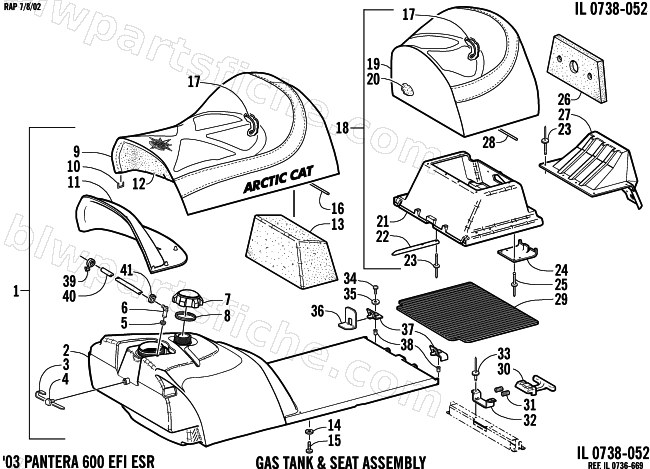

2003 Arctic Cat PANTERA 600 EFI ESR () — GAS TANK AND SEAT ASSEMBLY
2003 PANTERA 600 EFI ESR ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1718-338 | SEAT-S/P ASSY | 1 | $1,039.95 | |
| 2 | 0770-553 | TANK, GAS-ASSY-02 600 PTA EFI | 1 | $463.95 | |
| 3 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 4 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 5 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 6 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 7 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 9 | 2706-095 | COVER, SEAT-FR W/AC DECAL-BLK CHERRY | 1 | $311.95 | |
| 10 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 11 | 1606-612 | INSERT, SEAT FOAM-LG | 1 | $31.95 | |
| 12 | 3706-311 | FOAM, SEAT-FRONT | 1 | $187.95 | |
| 13 | 2606-133 | INSERT, SEAT FOAM | 1 | $38.95 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 16 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 17 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 19 | 1706-377 | COVER,SEAT-PASSENGER-BLK CHERRY | 1 | $252.95 | |
| 20 | 3706-312 | FOAM, SEAT-PASSENGER | 1 | $106.95 | |
| 21 | 2606-066 | SEATBASE, REAR-MACH | 1 | $86.95 | |
| 22 | 2706-166 | BRKT,HOLD DOWN-SEAT-FRT-RH-PTD BLK | 1 | $18.95 | |
| 22 | 2706-167 | BRKT,HOLD DOWN-SEAT-FRT-LH-PTD BLK | 1 | $16.95 | |
| 23 | 0623-853 | RIVET, BLIND-.162 DIA X .040/.275 GRIP | 1 | $1.09 | |
| 24 | 2606-161 | PLATE, STRIKE | 1 | $82.95 | |
| 25 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 26 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 27 | 1606-191 | EXTENSION,TOOLBOX | 1 | $104.95 | |
| 28 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 29 | 2606-180 | PAD, RUBBER-RIBBED | 1 | $65.95 | |
| 30 | 2606-159 | HANDLE, BACKREST-LATCH | 1 | $5.65 | |
| 31 | 2606-154 | SPRING, COMPRESSION | 1 | $50.95 | |
| 32 | 2706-130 | BRKT,RETAINER-LATCH-PTD BLK | 1 | $17.95 | |
| 33 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 34 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 35 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 36 | 2606-268 | GUARD, SEAT-RH | 1 | $5.65 | |
| 36 | 2606-269 | GUARD, SEAT-LH | 1 | $5.95 | |
| 37 | 2706-134 | BRKT, HOLDDOWN-RECEIVER-RH-PTD BLK | 1 | $17.95 | |
| 37 | 2706-135 | BRKT, HOLDDOWN-RECEIVER-LH-PTD BLK | 1 | $18.95 | |
| 38 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 39 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 40 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 40 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 41 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 |
