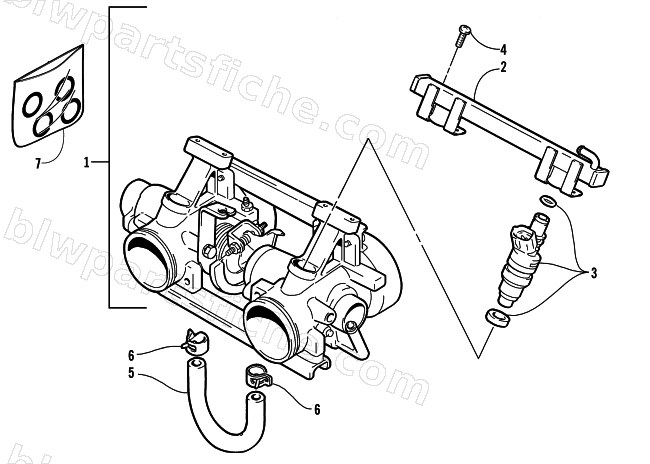

THROTTLE BODY ASSEMBLY
2003 PANTERA 800 EFI ESR ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-056 | BODY ASSY,THROTTLE 02 800 EFI(CIR) | 1 | $1,929.95 | |
| 1 | 3006-057 | BODY ASSY,THROTTLE 02 800 EFI(SQU) | 1 | $2,221.95 | |
| 1 | 3006-058 | BODY ASSY,THROTTLE 02 800 EFI(TRI) | 1 | $2,048.95 | |
| 2 | 3006-062 | PIPE ASSY,FUEL DEL 02 800 EFI | 1 | $889.95 | |
| 3 | 3007-698 | INJECTOR,FUEL (CIR) | 1 | $571.95 | |
| 3 | 3007-699 | INJECTOR,FUEL (SQU) | 1 | $571.95 | |
| 3 | 3007-700 | INJECTOR,FUEL (TRI) | 1 | $750.95 | |
| 4 | 3005-320 | SCREW,M5X16 | 1 | $1.95 | |
| 5 | 3006-078 | HOSE,'02 800 EFI | 1 | $71.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3005-692 | O-RING SET | 1 | $118.95 |
