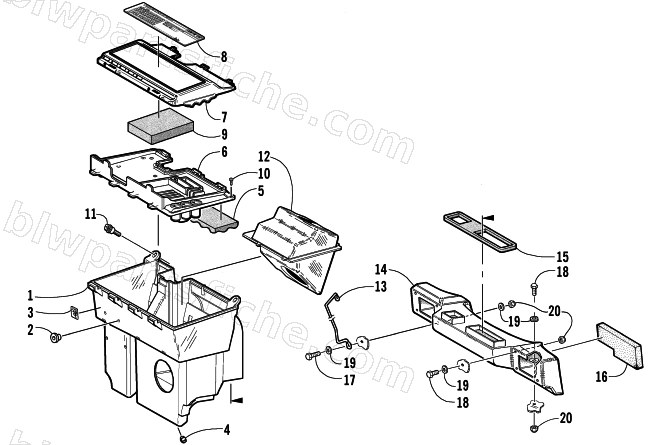

AIR SILENCER ASSEMBLY
2003 PANTHER 370 R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-337 | AIR SILENCER - ASSY, 99 JAG 340 DLX | 1 | $206.95 | |
| 2 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 3 | 4611-029 | DECAL, FUEL SHUT OFF | 1 | $16.95 | |
| 4 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 5 | 0617-393 | FOAM,AIR SILENCER-TOP LID | 1 | $14.95 | |
| 6 | 1670-197 | COVER, AIR SILENCER,UNROUTED | 1 | $41.95 | |
| 7 | 1670-049 | COVER, TOOL TRAY | 1 | $61.95 | |
| 8 | 5611-173 | DECAL, JET CHART-03 PA 370 | 1 | $35.95 | |
| 9 | 0617-411 | FOAM,TOOL TRAY | 1 | $14.95 | |
| 10 | 0623-882 | SCREW, SELF,TAP-PHPNH#10X5/8TYPE AB Z&Y | 1 | $0.15 | |
| 11 | 0623-780 | SCREW,HEX SHOULDER - 10/32 | 1 | $16.49 | |
| 12 | 1670-061 | RESONATOR, Q-WAVE-INLET-44MM | 1 | $41.95 | |
| 13 | 0707-705 | WIREFORM, GUIDE-HARNESS/ROPE-PTD BLK | 1 | $16.49 | |
| 14 | 1670-327 | PLENUM, AIR SILENCER,ROUTED(CARB) | 1 | $75.95 | |
| 15 | 0617-245 | SEAL, AIR BOX/PLENUM | 1 | $6.06 | |
| 16 | 0617-270 | FOAM,PLENUM-INTAKE | 1 | $12.35 | |
| 17 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 18 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
