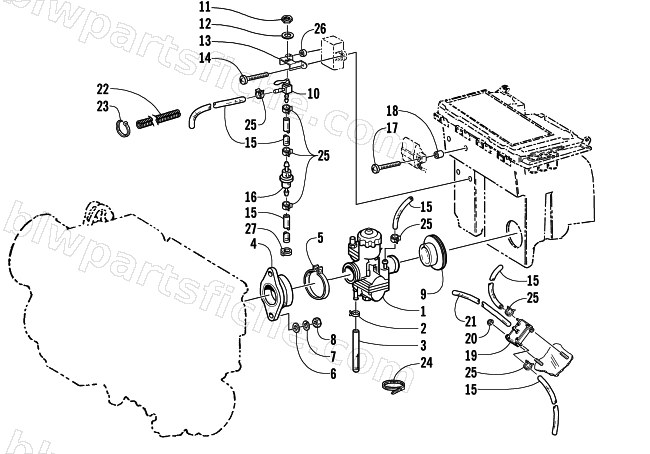

2003 Arctic Cat Z 370 (ESR) — CARBURETOR AND FUEL PUMP ASSEMBLY
2003 Z 370 (ESR)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-204 | CARB,VM32-304 | 1 | $493.95 | |
| 2 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 3 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 4 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 5 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 6 | 3423-204 | WASHER | 1 | $1.95 | |
| 7 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 8 | 3007-416 | NUT | 1 | $2.75 | |
| 9 | 1670-267 | BOOT, CARB | 1 | $52.95 | |
| 10 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 11 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 12 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 13 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 14 | 0623-833 | SCREW,MACH-PHPNH 10-32X1.00 Z&Y-SEMS | 1 | $1.95 | |
| 15 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 15 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 16 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 17 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 18 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 19 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 23 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 26 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 27 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
