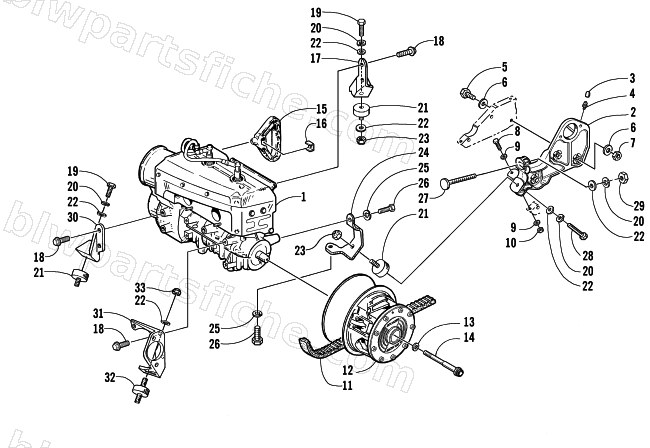

2003 Arctic Cat Z 370 (ESR) — ENGINE AND RELATED PARTS
2003 Z 370 (ESR)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-497 | ENGINE, 370 F/C-08 PROD | 1 | $1,889.95 | |
| 2 | 0708-140 | BRKT,BEARING SUPPORT-ASSY | 1 | $101.95 | |
| 3 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 4 | 0623-899 | ZERK, GREASE DRIVE | 1 | $2.88 | |
| 5 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 6 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 7 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 8 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0627-021 | BELT,DRIVE-REG COMPOUND- 12.2 CTRS | 1 | $92.95 | |
| 12 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 13 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 14 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 15 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 16 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 17 | 0708-048 | BRKT, ENG MTG-RH REAR (MACH) | 1 | $85.95 | |
| 18 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 19 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 20 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 21 | 0608-217 | MOUNT,ENG-50 DURO,.75 STUD,FULL WASHER | 1 | $26.95 | |
| 22 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 23 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 24 | 0708-412 | BRKT,MTG-ENG-LH REAR-PTD BLK | 1 | $22.95 | |
| 25 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 26 | 8002-402 | SCREW,CAP-HH 1/2-13 X1.00 G5 Z&Y | 1 | $1.64 | |
| 27 | 0608-197 | BUMPER,TORQUE-ENGINE (98 PROD) | 1 | $22.01 | |
| 29 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 30 | 0708-050 | BRKT, ENG MTG-RH FRONT(MACH) | 1 | $70.95 | |
| 32 | 0608-118 | MOUNT,ENGINE-DOUBLE MALE | 1 | $26.95 | |
| 33 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 |
