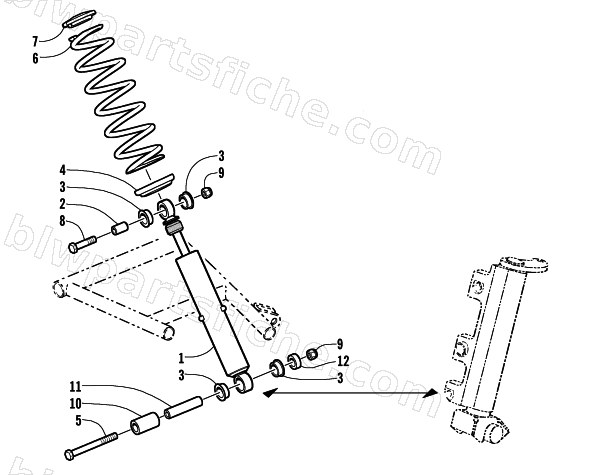

SHOCK ABSORBER ASSEMBLY
2003 Z 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-253 | SHOCK ABSORBER - SKI | 1 | $167.95 | |
| 2 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 2703-187 | RETAINER, SPRING-PTD BLK-SHOCK | 1 | $13.95 | |
| 5 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 6 | 0703-630 | SPRING,COMPRESSION (GREEN) | 1 | $79.95 | |
| 6 | 1703-080 | SPRING, COMPRESSION-#110-ORANGE | 1 | $90.95 | |
| 7 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 9 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 10 | 0603-854 | SPACER, SHOCK MTG - FRT | 1 | $13.73 | |
| 11 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 12 | 0603-855 | SPACER, SHOCK MTG - REAR | 1 | $3.99 |
