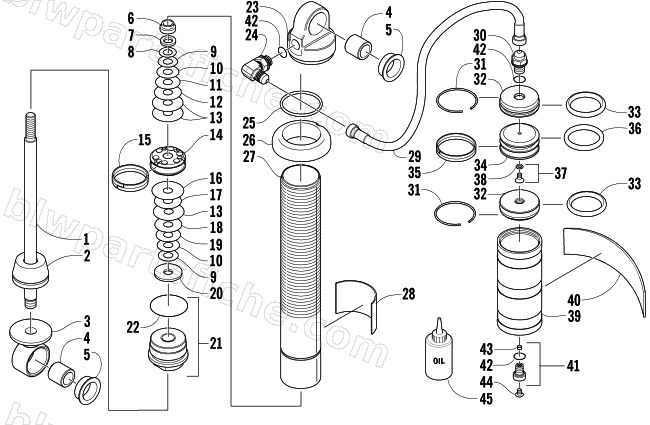

2003 Arctic Cat Z 440 SNO PRO — FRONT SUSPENSION SHOCK ABSORBER
2003 Z 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1703-282 | SHOCK,SKI-RH | 1 | $901.95 | |
| 0 | 1703-283 | SHOCK,SKI-LH | 1 | $794.95 | |
| 1 | 1603-946 | SHAFT,SHOCK-9.95 | 1 | $240.95 | |
| 2 | 1603-921 | BUMPER,SHAFT | 1 | $87.95 | |
| 3 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 4 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 5 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 6 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 7 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 8 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 9 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 10 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 11 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 12 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 13 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 14 | 0603-209 | PISTON,SHOCK-.081 DIA HOLE | 1 | $79.95 | |
| 15 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 16 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 17 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 18 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 19 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 20 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 21 | 2603-203 | BEARING, .625 ASSY (END CAP) | 1 | $105.95 | |
| 22 | 1604-420 | O-RING | 1 | $4.95 | |
| 23 | 1604-578 | ENDCAP, SHOCK - ASSY (FOX) | 1 | $157.95 | |
| 24 | 2603-205 | FITTING,ELBOW-90 DEG | 1 | $31.95 | |
| 25 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 26 | 0603-805 | ADJUSTER,SPRING-SHOCK (FOX)-THREADED BOD | 1 | $35.95 | |
| 27 | 1603-945 | BODY,SHOCK-8.9 | 1 | $240.95 | |
| 28 | 1603-922 | DECAL,SHOCK-4.88X1.5 | 1 | $22.01 | |
| 29 | 2603-204 | HOSE,FEMALE-1/2-20X11 | 1 | $165.95 | |
| 30 | 2603-206 | FITTING,ADAPTOR-STRAIGHT | 1 | $68.95 | |
| 31 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 32 | 1603-936 | END CAP,RESERVOIR-CLEAR ANOD | 1 | $52.95 | |
| 33 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 34 | 2604-517 | PISTON, INTERNAL FLOATING | 1 | $29.95 | |
| 35 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 36 | 1603-236 | O-RING, .210 C.S. X 1.350 ID | 1 | $11.95 | |
| 37 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 38 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 39 | 1603-935 | RESERVOIR,3 GROOVES-BLK ANOD | 1 | $152.95 | |
| 40 | 1603-932 | DECAL,SHOCK-6.25X1.00 | 1 | $21.95 | |
| 41 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 42 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 44 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 45 | 4639-369 | S/M SYN SHOCK OIL MED/LT WT-1 QUART | 1 | $27.99 |
