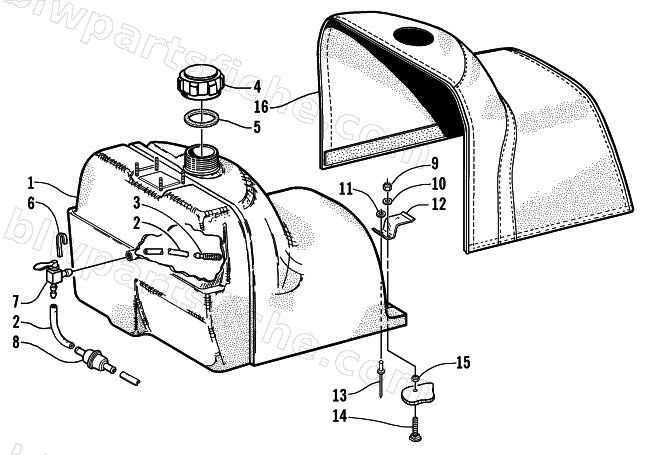

2003 Arctic Cat Z 440 SNO PRO — GAS TANK AND COVER
2003 Z 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-599 | TANK, GAS-ASSY | 1 | $387.95 | |
| 2 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 2 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 3 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 4 | 0670-871 | CAP,VENTED-GAS/OIL | 1 | $53.95 | |
| 6 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 7 | 0670-125 | VALVE,SHUT-OFF (90 DEG -THREADED) | 1 | $49.95 | |
| 8 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 11 | 0623-759 | WASHER,FLAT-.257 X .50 X .060 | 1 | $0.45 | |
| 12 | 1606-435 | BRKT,SEAT HOLD-DOWN ('98 440 PRO) | 1 | $12.35 | |
| 13 | 8060-848 | RIVET,BLIND-DH AS86 PL | 1 | $0.95 | |
| 14 | 0623-740 | BOLT,CARRIAGE 1/4-20 X 1.00" GR5 | 1 | $2.95 | |
| 15 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 0716-862 | COVER,GAS TANK ('98 440 PRO) | 1 | $86.95 |
