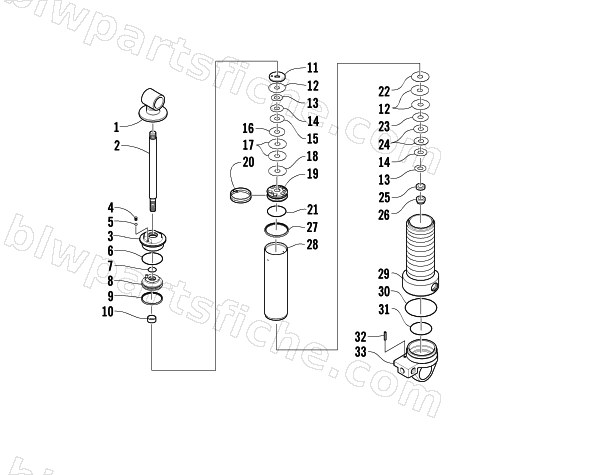

2003 Arctic Cat Z 440 SNO PRO — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2003 Z 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-911 | SHOCK,FRONT ARM | 1 | $913.95 | |
| 1 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 2 | 2604-230 | SHAFT,.498 X 6.640 | 1 | $66.95 | |
| 3 | 2604-568 | BEARING,.498-FRT ARM ASSY | 1 | $184.95 | |
| 4 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 5 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 6 | 1604-420 | O-RING | 1 | $4.95 | |
| 7 | 2604-203 | BEARING,INTERNAL | 1 | $3.95 | |
| 8 | 2604-444 | PISTON,SEPARATOR-1.459 BORE | 1 | $99.95 | |
| 9 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 11 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 12 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 13 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 14 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 15 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 16 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 17 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 18 | 0603-890 | VALVE, SHOCK 1.300 X.015(3/8ID) | 1 | $6.95 | |
| 19 | 2604-465 | PISTON,DAMPING-1.459 BORE,.046 | 1 | $31.95 | |
| 20 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 21 | 2604-214 | O-RING-25MM ID X 1.5 MM CS | 1 | $4.95 | |
| 22 | 0603-883 | VALVE, SHOCK 1.250 X.012(3/8ID) | 1 | $6.95 | |
| 23 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 24 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 25 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 26 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 27 | 0604-810 | O-RING | 1 | $4.95 | |
| 28 | 2604-220 | BODY,SHOCK-5.59 | 1 | $241.95 | |
| 29 | 2604-443 | SLEEVE,ADJUSTER-1.459 BORE | 1 | $276.95 | |
| 30 | 0604-809 | O-RING | 1 | $4.95 | |
| 31 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 32 | 1604-097 | PIN,ROLL-SPRING | 1 | $2.95 | |
| 33 | 2604-222 | CAP, BODY | 1 | $419.95 |
