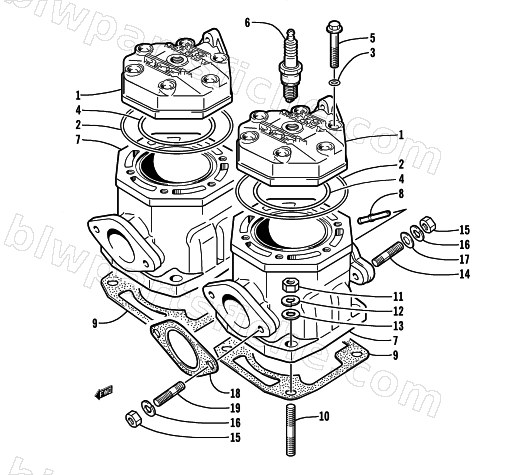

CYLINDER AND HEAD ASSEMBLY
2003 ZL 550 (ESR )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-762 | HEAD,550 L/C | 1 | $359.95 | |
| 2 | 3003-765 | O RING,HEAD-OUTER | 1 | $22.01 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-764 | O RING,HEAD-INNER | 1 | $30.95 | |
| 5 | 3007-408 | BOLT | 1 | $4.26 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3003-926 | CYLINDER, 550 L/C | 1 | $1,196.95 | |
| 8 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 | |
| 9 | 3003-763 | GASKET,CYL BASE 550-580L/C | 1 | $29.95 | |
| 10 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 11 | 3004-989 | NUT,10MM | 1 | $2.75 | |
| 12 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 13 | 3007-410 | WASHER | 1 | $2.75 | |
| 14 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 15 | 3007-416 | NUT | 1 | $2.75 | |
| 16 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 17 | 3423-204 | WASHER | 1 | $1.95 | |
| 18 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 19 | 3007-419 | STUD BOLT | 1 | $4.95 |
