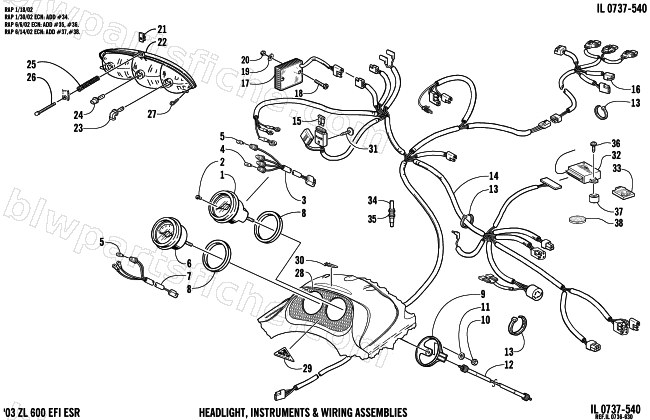

HEADLIGHT, INSTRUMENTS, & WIRING ASSEMBLIES (ESR)
2003 ZL 600 EFI (ESR )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-238 | SPEEDOMETER, 100MPH-W/O AC LOGO | 1 | $237.95 | |
| 2 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 3 | 0620-151 | HARNESS,SPEEDOMETER BULB | 1 | $117.95 | |
| 4 | 0620-149 | BULB,T-10 WEDGE BASE-12V 1.7W | 1 | $4.95 | |
| 5 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 6 | 0620-237 | TACHOMETER, ELEC-12P W/O AC LOGO | 1 | $306.95 | |
| 7 | 0620-215 | HARNESS,TACH-W/O ICON | 1 | $117.95 | |
| 8 | 0620-135 | RING, RUBBER CUSHION-TACH/SPEEDO | 1 | $3.57 | |
| 9 | 0620-134 | BACKCLAMP, TACH/SPEEDO | 1 | $17.95 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 12 | 0620-269 | CABLE, SPEEDOMETER-96" | 1 | $68.95 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0686-782 | HARNESS, MAIN-03 ZL EFI ESR (REMOTE) | 1 | $404.95 | |
| 15 | 0630-100 | FUSE, 7 1/2 AMP ATO/ATC | 1 | $5.95 | |
| 16 | 0686-515 | HARNESS, HOOD-W/ 3 BULB HL | 1 | $132.95 | |
| 17 | 0630-143 | REGULATOR,VOLTAGE-FW ES 3 WIRE | 1 | $94.95 | |
| 18 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0623-757 | NUT,U 1/4-20 (SHORT .50) | 1 | $1.78 | |
| 22 | 0609-250 | REFLECTOR/LENS,HEADLIGHT(0609-249) | 1 | $183.95 | |
| 23 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 24 | 0609-252 | BULB, (GE 885)HEADLIGHT-LOW BEAM | 1 | $31.95 | |
| 25 | 0623-466 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $5.78 | |
| 26 | 0623-467 | SCREW,THUMB-1/4X20X3.5 | 1 | $15.11 | |
| 27 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 28 | 3611-490 | DECAL,HOOD-CONSOLE | 1 | $70.95 | |
| 30 | 3611-581 | DECAL, "ESR" | 1 | $23.95 | |
| 31 | 0623-589 | CLIP,RETAINING-.191X.700 | 1 | $2.75 | |
| 32 | 0630-149 | CONTROL MODULE,REMOTE STARTER | 1 | $559.95 | |
| 34 | 0630-148 | SWITCH,HOOD-REMOTE STARTER | 1 | $32.95 | |
| 35 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 36 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 37 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 38 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 |
