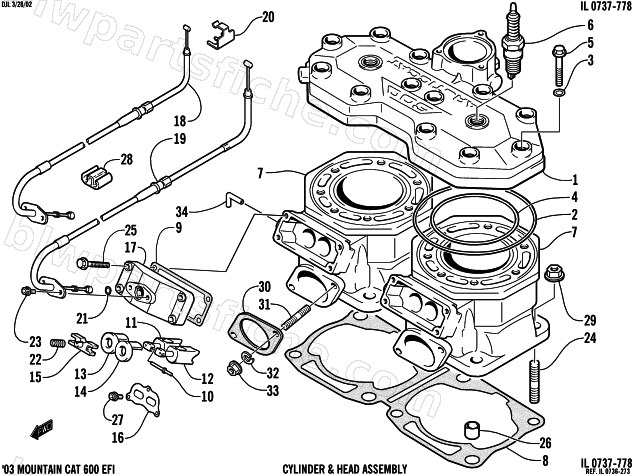

2003 Arctic Cat ZL 600 EFI SS () — CYLINDER AND HEAD ASSEMBLY
2003 ZL 600 EFI SS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-809 | HEAD, CYLINDER (01, 02 600 L/C X 2 EID) | 1 | $555.95 | |
| 2 | 3003-765 | O RING,HEAD-OUTER | 1 | $22.01 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3004-080 | O-RING,HEAD-INNER | 1 | $32.95 | |
| 5 | 3006-538 | BOLT,CYL HEAD | 1 | $5.65 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-653 | CYLINDER, 600 X 2 | 1 | $1,280.95 | |
| 8 | 3005-654 | GASKET,CYLINDER | 1 | $49.95 | |
| 9 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 10 | 3005-284 | PIN,EXH.VALVE | 1 | $42.95 | |
| 11 | 3005-656 | VALVE,EXHAUST RH | 1 | $283.95 | |
| 12 | 3005-657 | VALVE,EXHAUST LH | 1 | $283.95 | |
| 13 | 3005-658 | GUIDE,EXHAUST VALVE RH | 1 | $238.95 | |
| 14 | 3005-659 | GUIDE,EXHAUST VALVE LH | 1 | $247.95 | |
| 15 | 3005-655 | STOPPER,EXHAUST VALVE | 1 | $53.95 | |
| 16 | 3005-660 | PLATE,EXHAUST VALVE | 1 | $16.95 | |
| 17 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 18 | 3006-556 | CABLE,EXH VALVE | 1 | $96.95 | |
| 19 | 3006-557 | CABLE,EXH VALVE | 1 | $101.95 | |
| 20 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 21 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 22 | 3005-652 | SPRING | 1 | $6.47 | |
| 23 | 3007-433 | BOLT | 1 | $3.16 | |
| 24 | 3005-596 | STUD,BOLT | 1 | $17.87 | |
| 25 | 3007-381 | BOLT | 1 | $3.16 | |
| 26 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 27 | 3006-444 | BOLT, (5X12) | 1 | $3.95 | |
| 28 | 3005-808 | CLAMP | 1 | $6.95 | |
| 29 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 30 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 31 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 32 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 33 | 3007-416 | NUT | 1 | $2.75 | |
| 34 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 |
