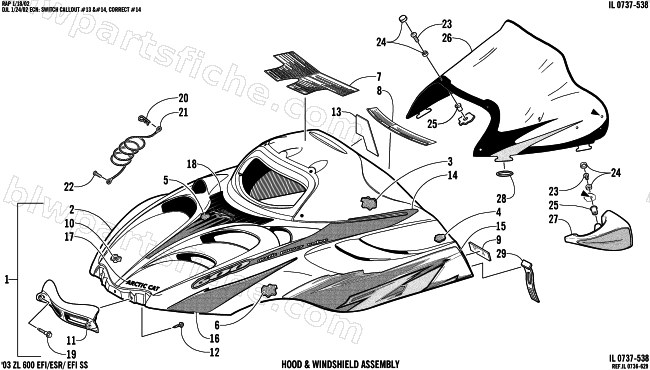

2003 Arctic Cat ZL 600 EFI SS () — HOOD AND WINDSHIELD ASSEMBLY
2003 ZL 600 EFI SS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-181 | HOOD W/DECALS, '03 ZL 600 EFI BLK | 1 | $1,312.95 | |
| 1 | 1718-221 | HOOD W/DECALS-03 600 SS GM | 1 | $1,312.95 | |
| 1 | 1718-182 | HOOD W/DECALS-'03 ZL 600 EFI ESR | 1 | $1,201.95 | |
| 1 | 1718-186 | HOOD W/DECALS '03 600 ESR GUNMET | 1 | $1,312.95 | |
| 2 | 1718-273 | HOOD, W/O DECALS-BLK 03 ZL | 1 | $1,090.95 | |
| 2 | 1718-220 | HOOD W/O DECALS-03 600 SS GM | 1 | $1,090.95 | |
| 2 | 1718-178 | HOOD W/O DECALS - '03 550 ESR BLK | 1 | $996.95 | |
| 2 | 1718-274 | HOOD, W/O DECALS (03 SLVR ZL ESR) | 1 | $1,242.95 | |
| 4 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 14 | 4611-620 | DECAL, HOOD UPPER RH (ZL 600 BLK) | 1 | $97.95 | |
| 14 | 4611-619 | DECAL, HOOD UPPER LH (ZL 600 BLK) | 1 | $86.95 | |
| 14 | 4611-618 | DECAL, HOOD UPPER RH - ZL 600 GM | 1 | $102.95 | |
| 14 | 4611-617 | DECAL, HOOD UPPER LH - ZL 600 GM | 1 | $89.95 | |
| 15 | 4611-574 | DECAL, HOOD LOWER RH (ZL BLK) | 1 | $101.95 | |
| 15 | 4611-575 | DECAL, HOOD LOWER LH (ZL BLK) | 1 | $101.95 | |
| 15 | 4611-598 | DECAL, HOOD LWR RH (SILVER) | 1 | $101.95 | |
| 15 | 4611-597 | DECAL, HOOD LWR LH (SILVER) | 1 | $101.95 | |
| 16 | 4611-576 | DECAL, HOOD FWD SIDE RH (ZL BLK) | 1 | $64.95 | |
| 16 | 4611-577 | DECAL, HOOD FWD SIDE LH (ZL BLK) | 1 | $64.95 | |
| 16 | 4611-600 | DECAL, HOOD FWD SIDE RH (SILVER) | 1 | $64.95 | |
| 16 | 4611-599 | DECAL, HOOD FWD SIDE LH (SILVER) | 1 | $64.95 | |
| 17 | 3611-186 | DECAL, HOOD-"ARCTIC CAT"-GRN-CURVED | 1 | $21.95 | |
| 17 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 18 | 4611-578 | DECAL, HOOD CREST | 1 | $41.95 | |
| 18 | 4611-601 | DECAL, HOOD CREST (ZL SILVER) | 1 | $41.95 | |
| 19 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 21 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 23 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 2606-635 | WINDSHIELD,MED-W/GRAPHICS (03 BLK ZL) | 1 | $232.95 | |
| 26 | 2606-636 | WINDSHIELD, W/GRAPHICS-SILVER ZL | 1 | $240.95 | |
| 26 | 2606-644 | WINDSHIELD-W/HOLES-W/GRAPHICS (SLVR ZL) | 1 | $243.95 | |
| 28 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 29 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 |
