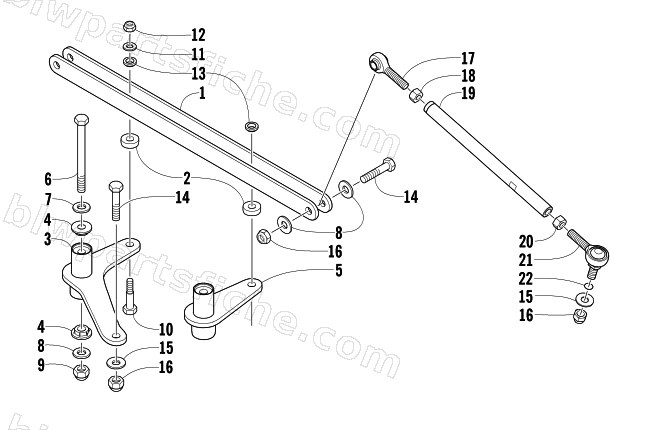

TIE ROD ASSEMBLY
2003 ZL 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-370 | DRAG LINK W/BEARING | 1 | $269.95 | |
| 3 | 0705-368 | BELLCRANK,STEERING-ASSY-PTD BLK | 1 | $89.95 | |
| 4 | 0605-540 | AXLE, BELLCRANK | 1 | $1.64 | |
| 5 | 0705-366 | BELLCRANK,IDLER-ASSY-PTD BLK | 1 | $78.95 | |
| 6 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 7 | 0623-439 | WASHER, FLAT .375X.625X.064 | 1 | $2.33 | |
| 8 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 9 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 10 | 0623-920 | SCREW, CAP HH-ROLLER DRAGLINK | 1 | $2.95 | |
| 11 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 12 | 0623-422 | NUT,FLEXLOCK-5/16-18 UNC Z&Y | 1 | $1.50 | |
| 13 | 0605-522 | AXLE,INNER - DRAG LINK | 1 | $1.95 | |
| 14 | 8004-226 | SCREW,CAP-HH 3/8-24X1.75 G5 Z&Y | 1 | $1.50 | |
| 15 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 16 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 17 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 | |
| 18 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 19 | 0605-352 | TUBE,TIE ROD-SPINDLE - 9.84" W/FLATS | 1 | $32.95 | |
| 20 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 21 | 1605-011 | ROD END,LH-3/8-24 W/STUD | 1 | $43.95 | |
| 22 | 0605-014 | O-RING,RUBBER | 1 | $0.26 |
