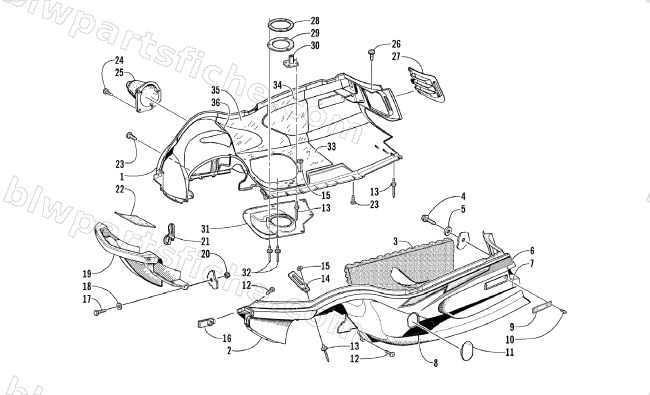

2003 Arctic Cat ZL 800 EFI ESR (ESR ) — BELLY PAN AND FRONT BUMPER ASSEMBLY
2003 ZL 800 EFI ESR (ESR )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1706-198 | BELLY PAN, RH-BLK-ROUTED | 1 | $221.95 | |
| 1 | 1706-356 | BELLY PAN, RH PLATINUM-ROUTED | 1 | $213.95 | |
| 2 | 1706-141 | BELLY PAN, LH-ROUTED | 1 | $405.95 | |
| 2 | 2706-055 | BELLYPAN, LH ROUTED-PLATINUM | 1 | $224.95 | |
| 3 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 4 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 5 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 6 | 4611-582 | GRAPHIC, BELLYPAN UPPER RH | 1 | $66.95 | |
| 6 | 4611-581 | GRAPHIC, BELLYPAN UPPER LH | 1 | $69.95 | |
| 6 | 4611-588 | GRAPHIC, BELLYPAN RH UPPER (SLVR) | 1 | $64.95 | |
| 6 | 4611-589 | GRAPHIC, BELLYPAN UPPER LH (ZL SLVR) | 1 | $64.95 | |
| 7 | 4611-584 | GRAPHIC, BELLYPAN LWR RH | 1 | $65.95 | |
| 7 | 4611-583 | GRAPHIC, BELLYPAN LWR LH | 1 | $63.95 | |
| 7 | 4611-590 | GRAPHIC, BELLYPAN LWR RH (ZL SLVR) | 1 | $69.95 | |
| 7 | 4611-591 | GRAPHIC, BELLYPAN LWR LH (ZL SLVR) | 1 | $66.95 | |
| 8 | 4611-586 | GRAPHIC, BELLYPAN FWD LWR RH | 1 | $27.95 | |
| 8 | 4611-585 | GRAPHIC, BELLYPAN FWD LWR LH | 1 | $27.95 | |
| 8 | 4611-592 | GRAPHIC, BELLYPAN FWD SIDE RH (SLVR) | 1 | $34.95 | |
| 8 | 4611-593 | GRAPHIC, BELLYPAN FWD SIDE LH (SLVR) | 1 | $32.95 | |
| 9 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 10 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 11 | 1606-767 | PANEL, CLUTCH ACCESS-BLK | 1 | $33.95 | |
| 11 | 2606-293 | PANEL,CLUTCH ACCESS-GUN METAL | 1 | $19.95 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 13 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 14 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 15 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 16 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 17 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 18 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 19 | 2606-224 | BUMPER,FR ROUTED | 1 | $152.95 | |
| 20 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 | |
| 22 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 23 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 24 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 25 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 25 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 26 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 27 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 27 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 27 | 2606-390 | LOUVER, AIR INTAKE-RH-GUN METAL | 1 | $54.95 | |
| 27 | 2606-391 | LOUVER, AIR INTAKE-LH-GUN METAL | 1 | $54.95 | |
| 28 | 0712-917 | PLATE,EXH-OUTLET SEAL-PTD BLK | 1 | $19.95 | |
| 29 | 1612-372 | SEAL, EXH,OUTLET | 1 | $17.87 | |
| 30 | 0712-693 | PLATE, DRAIN-PTD BLK | 1 | $102.95 | |
| 32 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 33 | 2606-374 | FOIL, PROTECTIVE,LOWER REAR | 1 | $30.95 | |
| 34 | 2606-375 | FOIL, PROTECTIVE,UPPER REAR | 1 | $15.11 | |
| 35 | 2606-376 | FOIL, PROTECTIVE,UPPER FRONT | 1 | $27.95 | |
| 36 | 2606-387 | FOIL,PROTECTIVE-LWR FRONT | 1 | $29.95 |
