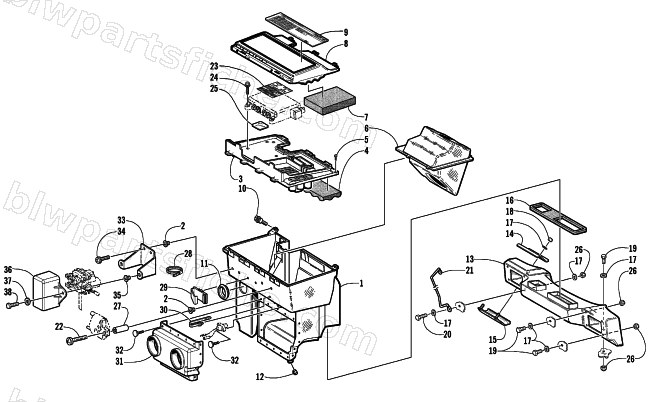

2003 Arctic Cat ZR 800 EFI SNO PRO () — AIR SILENCER ASSEMBLY
2003 ZR 800 EFI SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-575 | SILENCER, AIR-ASSY | 1 | $144.95 | |
| 2 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 3 | 1670-197 | COVER, AIR SILENCER,UNROUTED | 1 | $41.95 | |
| 4 | 0617-393 | FOAM,AIR SILENCER-TOP LID | 1 | $14.95 | |
| 5 | 0623-882 | SCREW, SELF,TAP-PHPNH#10X5/8TYPE AB Z&Y | 1 | $0.15 | |
| 6 | 1670-061 | RESONATOR, Q-WAVE-INLET-44MM | 1 | $41.95 | |
| 7 | 0617-411 | FOAM,TOOL TRAY | 1 | $14.95 | |
| 8 | 1670-049 | COVER, TOOL TRAY | 1 | $61.95 | |
| 9 | 4611-663 | DECAL,CLUTCHING-2003 ZR 800 EFI | 1 | $35.95 | |
| 10 | 0623-780 | SCREW,HEX SHOULDER - 10/32 | 1 | $16.49 | |
| 11 | 2606-062 | PLUG, CAP,1 1/2 | 1 | $3.02 | |
| 12 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 13 | 1670-326 | PLENUM, AIR SILENCER-ROUTED-EFI | 1 | $98.95 | |
| 14 | 2606-095 | PLATE,BACKING-ADJUSTABLE FOOTHOLD | 1 | $11.95 | |
| 15 | 1706-899 | PLATE, ADJUSTABLE-PTD BLK | 1 | $26.95 | |
| 16 | 0617-245 | SEAL, AIR BOX/PLENUM | 1 | $6.06 | |
| 17 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 18 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 20 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 21 | 0707-705 | WIREFORM, GUIDE-HARNESS/ROPE-PTD BLK | 1 | $16.49 | |
| 22 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 23 | 3611-403 | DECAL,INSTRUCTIONS-FUEL/EFI | 1 | $8.95 | |
| 24 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 25 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 26 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 27 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0623-792 | CLIP,WIRE/HOSE PUSH MOUNT | 1 | $3.99 | |
| 30 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 31 | 1670-256 | BOOT, EFI-2002 800 | 1 | $100.95 | |
| 32 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 33 | 0770-618 | PLATE, MTG-COMPONENT/SERVO-PTD BLK | 1 | $17.87 | |
| 34 | 0623-888 | SCREW,MACH-PHPNH 10-32X.75 Z&Y-SEMS | 1 | $0.54 | |
| 35 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 37 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 38 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 |
