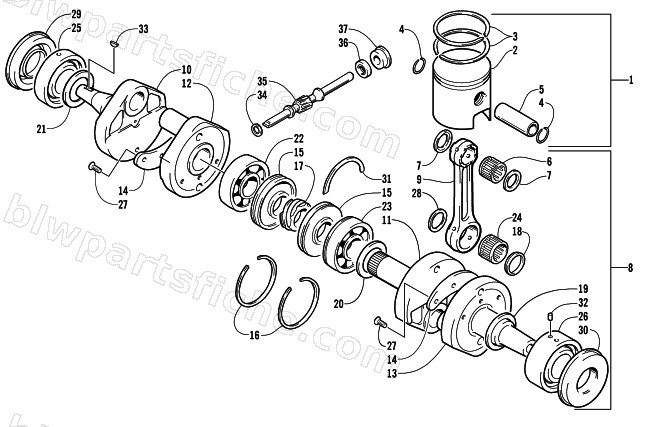

2003 Arctic Cat ZR 800 EFI SNO PRO () — PISTON AND CRANKSHAFT
2003 ZR 800 EFI SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-029 | PISTON,ASSY 800 L/C x 2 EFI | 1 | $252.95 | |
| 3 | 3005-865 | RING SET, PISTON (800) | 1 | $113.95 | |
| 4 | 3008-585 | SNAP RING,M24 | 1 | $3.71 | |
| 5 | 3005-866 | PIN, PISTON | 1 | $32.95 | |
| 6 | 3008-583 | BEARING,NEEDLE,M24 | 1 | $41.95 | |
| 7 | 3008-582 | WASHER, M24X36X2 | 1 | $13.73 | |
| 8 | 3006-053 | CRANKSHAFT ASSY, 02 800 L/C EFI | 1 | $2,661.95 | |
| 9 | 3005-867 | ROD, CONNECTING | 1 | $234.95 | |
| 10 | 3006-054 | CRANKSHAFT, R 02 800 L/C EFI | 1 | $510.95 | |
| 11 | 3006-917 | CRANKSHAFT,M | 1 | $406.95 | |
| 12 | 3006-919 | WHEEL,CRANKSHAFT | 1 | $427.95 | |
| 13 | 3006-920 | CRANKSHAFT,L | 1 | $436.95 | |
| 14 | 3005-872 | BALANCER, CRANKSHAFT | 1 | $57.95 | |
| 15 | 3005-873 | RACE, MIDDLE CRANK SEAL | 1 | $90.95 | |
| 16 | 3005-874 | RING, MIDDLE CRANK SEAL | 1 | $34.95 | |
| 17 | 3005-882 | GEAR, OIL PUMP DRIVE | 1 | $201.95 | |
| 18 | 3004-147 | WASHER, M30X42X3 | 1 | $17.87 | |
| 19 | 3005-848 | WASHER | 1 | $13.73 | |
| 20 | 3008-495 | WASHER,40MM | 1 | $4.68 | |
| 21 | 3005-849 | WASHER | 1 | $15.11 | |
| 22 | 3005-850 | BEARING | 1 | $190.95 | |
| 23 | 3005-851 | BEARING | 1 | $292.95 | |
| 24 | 3008-584 | BEARING,NEEDLE,M30 | 1 | $73.95 | |
| 25 | 3005-852 | BEARING | 1 | $217.95 | |
| 26 | 3005-853 | BEARING | 1 | $287.95 | |
| 27 | 3007-440 | SCREW | 1 | $2.06 | |
| 28 | 3008-603 | WASHER, CRANK PIN NO. 1-M30X38 | 1 | $4.68 | |
| 29 | 3005-855 | SEAL, OIL | 1 | $88.95 | |
| 30 | 3005-856 | SEAL, OIL | 1 | $85.95 | |
| 31 | 3005-857 | C-RING | 1 | $20.63 | |
| 32 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 33 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 34 | 3423-300 | WASHER,M10X18X1 | 1 | $2.75 | |
| 35 | 3005-883 | GEAR, OIL PUMP DRIVEN | 1 | $131.95 | |
| 36 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 37 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 |
