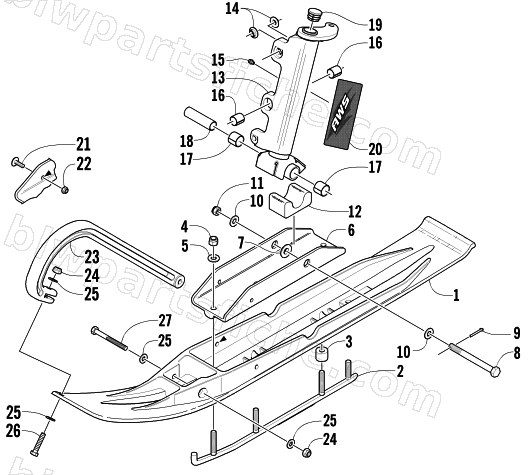

2003 Arctic Cat ZR 800 EFI SNO PRO () — SKI AND SPINDLE ASSEMBLY
2003 ZR 800 EFI SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-844 | SKI,PLASTIC-GRN (USE 0703-595 BLACK) | 1 | $227.95 | |
| 1 | 0703-958 | SKI, PLASTIC,MACH BLK(W/SKAG GROOVE) | 1 | $234.95 | |
| 3 | 0603-616 | SPACER,SADDLE | 1 | $20.63 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 5 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 6 | 0703-853 | SADDLE, SKI W/INSERTS-PLATINUM | 1 | $87.95 | |
| 7 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 8 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 9 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 10 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 11 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 12 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 13 | 0703-855 | SPINDLE, RH - FAB ('02 ZRT 600) | 1 | $279.95 | |
| 13 | 0703-856 | SPINDLE, LH - FAB (02 ZRT 600) | 1 | $270.95 | |
| 14 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 15 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 16 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 17 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 18 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 19 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 20 | 4611-678 | DECAL,SPINDLE-RH | 1 | $40.95 | |
| 20 | 4611-679 | DECAL,SPINDLE-LH | 1 | $42.95 | |
| 21 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 22 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 1603-248 | HANDLE, PLASTIC SKI - ZR GREEN | 1 | $46.95 | |
| 23 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 24 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 25 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 26 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 27 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 |
