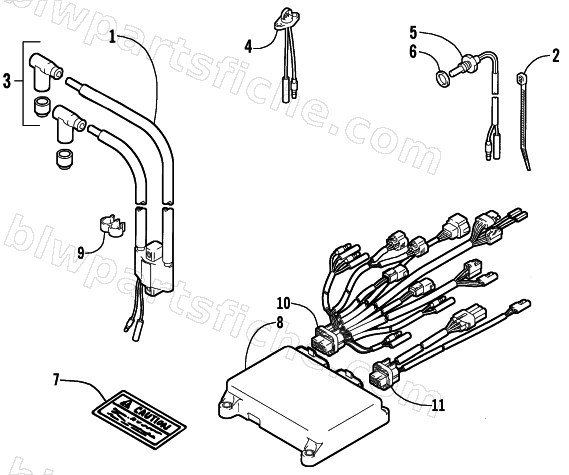

ELECTRICAL
2003 ZR 800 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-381 | COIL ASSY, IGNITION | 1 | $244.95 | |
| 2 | 3005-237 | CLAMP,M19 | 1 | $20.63 | |
| 3 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 4 | 3005-460 | SENSOR, AIR TEMP | 1 | $150.95 | |
| 5 | 3006-515 | SENSOR ASSY,COOLING WATER | 1 | $172.95 | |
| 6 | 3005-233 | WASHER, COOLING WATER SENSOR | 1 | $12.35 | |
| 7 | 2611-755 | DECAL,CAUTION-HOT SURFACE | 1 | $17.95 | |
| 8 | 3006-480 | ECU 03 800 X 2 ZR-CIR | 1 | $2,644.95 | |
| 8 | 3006-481 | ECU 03 800 X 2 ZR-SQU | 1 | $2,735.95 | |
| 8 | 3006-482 | ECU 03 800 X 2 ZR-TRI | 1 | $2,358.95 | |
| 9 | 3005-387 | CLIP | 1 | $4.40 | |
| 10 | 3006-072 | HARNESS,CONTROLLER(34 PIN)02 800 EFI | 1 | $373.95 | |
| 11 | 3006-079 | HARNESS,CONT (26 PIN) '02 800 EFI | 1 | $362.95 |
