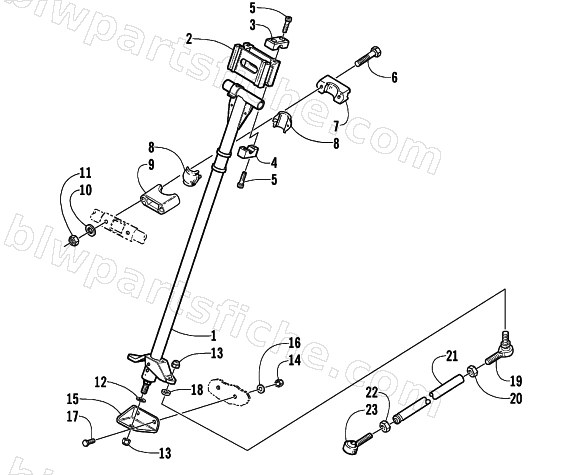

2003 Arctic Cat ZR 800 EFI () — STEERING POST ASSEMBLY
2003 ZR 800 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-378 | POST,STEERING-PTD BLK | 1 | $129.95 | |
| 2 | 0605-513 | RISER,4.5 HANDLEBAR-MACH | 1 | $75.95 | |
| 2 | 0605-491 | RISER,5.5 HANDLEBAR-MACH | 1 | $78.95 | |
| 2 | 0605-512 | RISER,6.5 HANDLEBAR-MACH | 1 | $89.95 | |
| 2 | 0605-514 | RISER, HANDLE BAR-MACH- 2.5" | 1 | $70.95 | |
| 3 | 0705-881 | CAP,STEERING ADJUSTER-PTD BLK | 1 | $38.95 | |
| 5 | 0623-872 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 BLK&Z | 1 | $2.69 | |
| 6 | 0623-814 | SCREW,CAP-1/2HH 1/4 - 20 X 3.00 GR 5 Z&Y | 1 | $1.09 | |
| 7 | 0605-406 | CAP,BEARING-HOUSING - STEERING POST(99PR | 1 | $33.95 | |
| 8 | 0405-020 | BEARING,STEERING POST | 1 | $2.33 | |
| 9 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 13 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 15 | 0705-407 | PLATE STEERING POST MTG-PTD BLK | 1 | $71.95 | |
| 16 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 17 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 18 | 0623-985 | WSHR, FLAT-HARD-.375 X .875 | 1 | $13.73 | |
| 19 | 0605-423 | ROD END,LH-3/8-24 W/STUD | 1 | $45.95 | |
| 20 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 21 | 0605-626 | TUBE,TIE ROD- CENTER-14.30" W/FLATS | 1 | $26.95 | |
| 22 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 23 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 |
