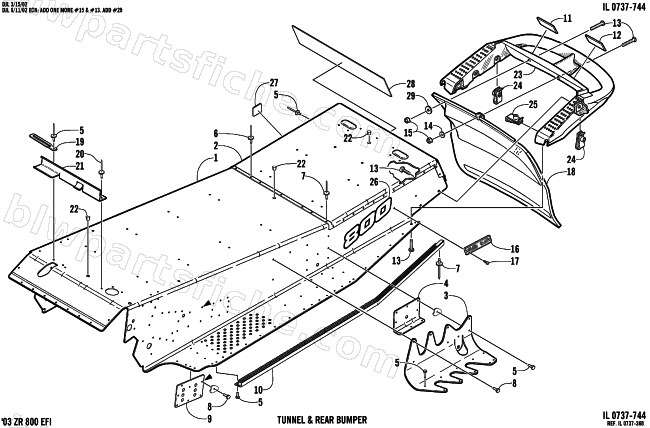

TUNNEL AND REAR BUMPER
2003 ZR 800 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-247 | TUNNEL,ASSY-UNPAINTED | 1 | $759.95 | |
| 2 | 2606-867 | PLATE, END-REAR TUNNEL UNPTD | 1 | $144.95 | |
| 3 | 2606-238 | BRKT, REAR SUSP-MTG-RH | 1 | $101.95 | |
| 3 | 2606-239 | BRKT, REAR SUSP-MTG-LH | 1 | $101.95 | |
| 4 | 1706-854 | PLATE, BACKING-REAR SUSP MTG BLK | 1 | $11.95 | |
| 5 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 5 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 6 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 7 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 8 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 9 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 10 | 2606-426 | ROLL,TUNNEL-RH-FORMED | 1 | $54.95 | |
| 10 | 2606-425 | ROLL,TUNNEL-LH-FORMED | 1 | $54.95 | |
| 11 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 12 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 13 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 17 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 18 | 2606-457 | SNOWFLAP,GRN BLK ARCTIC CAT | 1 | $147.95 | |
| 18 | 1606-202 | SNOWFLAP-BLK (99 PROD) | 1 | $96.95 | |
| 18 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 19 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 20 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 21 | 0707-704 | BRKT, MAIN HARNESS PROTECTOR-PTD BLK | 1 | $17.95 | |
| 22 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 23 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 24 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 25 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 26 | 4611-828 | DECAL,TUNNEL-800 (GRN) | 1 | $65.95 | |
| 26 | 4611-829 | DECAL,TUNNEL-800(RED) | 1 | $63.95 | |
| 27 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 28 | 4611-112 | DECAL,FASTRACK/ETT | 1 | $39.95 | |
| 29 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 |
