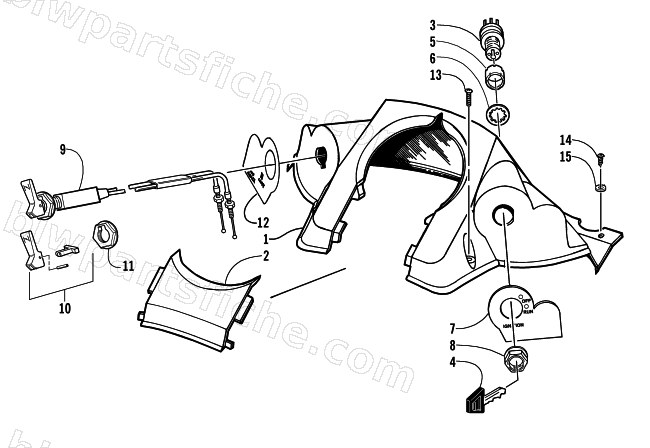

2003 Arctic Cat ZR 900 EARLY BUILD — CONSOLE AND SWITCH ASSEMBLY
2003 ZR 900 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-103 | CONSOLE,MULTIKEY-BLK-ROUTED | 1 | $42.95 | |
| 2 | 1606-105 | DOOR,CONSOLE | 1 | $19.25 | |
| 3 | 0609-286 | SWITCH, IGNITION NORM OPEN | 1 | $66.95 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 7 | 2611-678 | DECAL,CONSOLE SWITCH-RH | 1 | $42.95 | |
| 8 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 9 | 0687-136 | CABLE,CHOKE-LONG PULL TWIN | 1 | $109.95 | |
| 10 | 1639-835 | KIT, CHOKE LEVER/LONG PULL | 1 | $20.63 | |
| 11 | 0687-132 | NUT,PLASTIC-LP CHOKE | 1 | $5.65 | |
| 12 | 2611-867 | DECAL,CONSOLE-LH (CHOKE) | 1 | $42.95 | |
| 13 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 14 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 15 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 |
