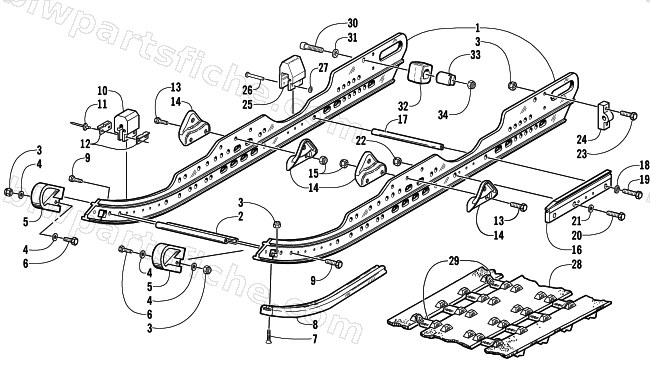

2003 Arctic Cat ZR 900 EARLY BUILD — SLIDE RAIL AND TRACK ASSEMBLY
2003 ZR 900 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-050 | RAIL, 121"-FORMED-STAMPED (WIDE PROFILE) | 1 | $331.95 | |
| 2 | 1604-109 | SADDLE,FRT ARM SHOCK RES.-MACH. | 1 | $120.95 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 10 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 13 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 14 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 1604-488 | BRACE,RAIL-RH (99 PRO) | 1 | $60.95 | |
| 16 | 1604-489 | BRACE,RAIL-LH (99 PRO) | 1 | $60.95 | |
| 17 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 18 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 19 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 20 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 21 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 22 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 23 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 24 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 26 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 27 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 28 | 2602-398 | TRACK,HACKSAW (NQ)-15"X121"X1" | 1 | $914.95 | |
| 29 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 30 | 8005-676 | SCREW, CAP-HSH 3/8-16X1.75 Z&Y | 1 | $1.95 | |
| 31 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 32 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 33 | 2604-046 | BUSHING, REAR ARM COUPLER | 1 | $29.95 | |
| 34 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 |
