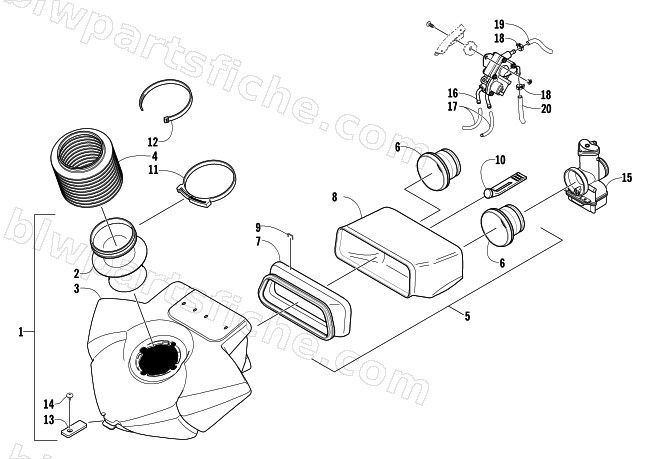

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — AIR SILENCER ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-611 | SILENCER,AIR-ASSY (RB 0770-720) | 1 | $125.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 1670-774 | SILENCER,AIR-ASSY | 1 | $101.95 | |
| 4 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 5 | 0770-581 | BOOT,AIR SILENCER-ASSY | 1 | $135.95 | |
| 6 | 1670-677 | BOOT,CARB | 1 | $45.95 | |
| 7 | 1670-317 | SEAL,RUBBER-AIR SILENCER | 1 | $56.95 | |
| 8 | 1670-318 | BOOT, EXTENSION-AIR SILENCER | 1 | $69.95 | |
| 10 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 11 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 12 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 13 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 14 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 15 | 1670-605 | CARB,TMX34-31 | 1 | $457.95 | |
| 16 | 1670-269 | PUMP, FUEL - LAYDOWN | 1 | $185.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 17 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 18 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 19 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 19 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 20 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 |
