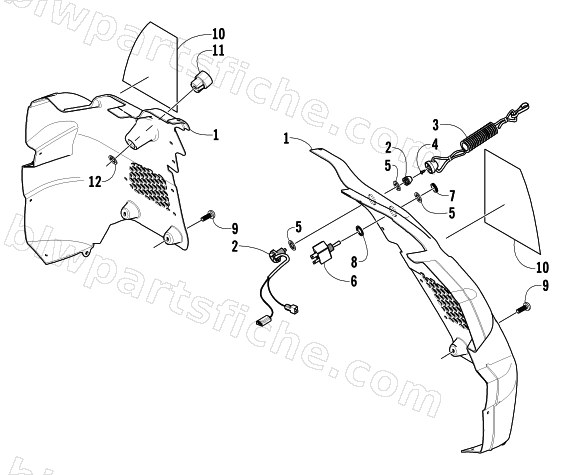

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — CONSOLE AND SWITCH ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-497 | CONSOLE,440 CARB-LH | 1 | $63.95 | |
| 2 | 0709-071 | TETHER SWITCH-ASSY(OPEN) | 1 | $92.95 | |
| 3 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 5 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 6 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 7 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 8 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 5611-926 | DECAL,CAUTION/WARNING-RH | 1 | $16.95 | |
| 10 | 5611-927 | DECAL,CAUTION/WARNING-LH | 1 | $18.95 | |
| 11 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 12 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 |
