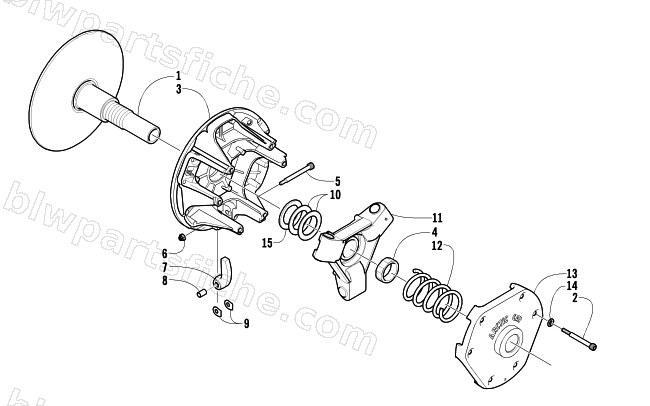

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — DRIVE CLUTCH
2004 ARCTIC CAT 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-422 | CLUTCH,DRIVE-UNCAL-8.0" 30MM/D/NFP/440SP | 1 | $971.95 | |
| 0 | 1639-030 | KIT, CAM ARM REPAIR- W/O ARMS | 1 | $81.95 | |
| 1 | 0646-361 | SHEAVE,STATIONARY-MACH SHALLOW BORE | 1 | $245.95 | |
| 2 | 1623-442 | SCREW, CAP-HH 1/4-20X2.50 GD 8 | 1 | $1.23 | |
| 3 | 0646-326 | SHEAVE, MOVEABLE - DRIVE CLUTCH | 1 | $308.95 | |
| 4 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 5 | 0646-295 | PIN, CAM-ARM | 1 | $15.11 | |
| 6 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 7 | 0746-704 | ARM,CAM-50.7 GRAM-W/BEARING | 1 | $22.95 | |
| 8 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 9 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 10 | 0646-265 | WASHER,SPACER-CLUTCH .060 (BLACK) | 1 | $3.16 | |
| 11 | 0746-118 | SPIDER, ASSY-MACH | 1 | $283.95 | |
| 12 | 0646-684 | SPRING,CLUTCH-BLACK | 1 | $57.95 | |
| 13 | 0746-097 | COVER,DRIVE CLUTCH-ASSY | 1 | $117.95 | |
| 14 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 15 | 0646-318 | SPACER,CLUTCH-SPIDER | 1 | $23.95 |
