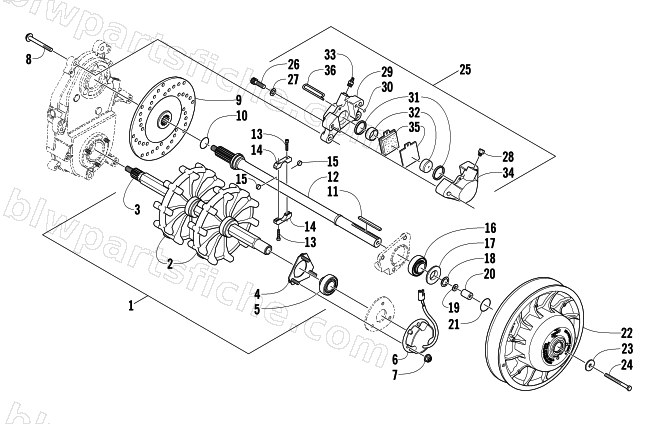

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2004 ARCTIC CAT 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-112 | TRACK DRIVE-ASSY | 1 | $399.95 | |
| 2 | 1602-574 | SPROCKET,DRIVE-9T | 1 | $73.95 | |
| 3 | 1602-530 | SHAFT,DRIVE-(37.5 DEG PRESSURE ANGLE) | 1 | $240.95 | |
| 4 | 0702-412 | FLANGE, BEARING-INNER ASSY | 1 | $30.95 | |
| 5 | 2602-389 | BEARING,1 1/16-DRIVESHAFT | 1 | $50.95 | |
| 6 | 0630-180 | REGULATOR,VOLTAGE-W/O SENSOR | 1 | $117.95 | |
| 7 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 8 | 8020-315 | SCREW,CAP-HFH 7/16-14 X1.50 G5 Z&Y | 1 | $2.75 | |
| 9 | 1602-401 | DISC,BRAKE-FORGED-SPLINED | 1 | $278.95 | |
| 10 | 1602-199 | O-RING, BRAKE HUB-1 1/8" | 1 | $2.75 | |
| 11 | 1602-575 | KEY,2.50 X .25 X .218 | 1 | $12.95 | |
| 12 | 0702-558 | SHAFT,DRIVEN-ASSY-1" SPLINE | 1 | $476.95 | |
| 13 | 8005-402 | SCREW, CAP-HSH 10-24X1.0 Z&Y | 1 | $0.68 | |
| 14 | 3606-581 | BRKT,SPEEDO SENSOR | 1 | $42.95 | |
| 15 | 0630-167 | MAGNET,DISC-.438 | 1 | $15.11 | |
| 16 | 1602-233 | BEARING, 1 W/O LOCK | 1 | $32.95 | |
| 17 | 1602-367 | SPACER,DRIVEN CLUTCH | 1 | $22.01 | |
| 18 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 18 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 19 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 20 | 0648-709 | SHAFT,STUB-DRIVEN | 1 | $14.95 | |
| 21 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 22 | 0726-181 | CLUTCH,DRIVEN-AC 440 (TI) | 1 | $714.95 | |
| 24 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 25 | 1602-639 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $522.95 | |
| 26 | 8005-679 | SCREW, CAP-HSH 3/8-16X2.50 Z&Y | 1 | $3.85 | |
| 27 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 28 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 30 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 31 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 32 | 0602-708 | PISTON | 1 | $81.95 | |
| 33 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 35 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 |
