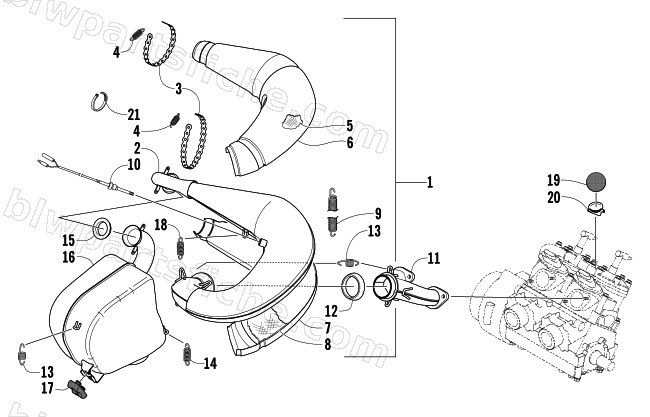

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — EXHAUST ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-078 | CHAMBER,EXP-FABR | 1 | $936.95 | |
| 2 | 1712-079 | CHAMBER,EXP-PTD BLK | 1 | $710.95 | |
| 3 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 3 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 4 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 5 | 1612-784 | PACKING,EXP CHAMBER-UPPER | 1 | $21.95 | |
| 6 | 1612-666 | COVER,EXP CHAMBER-UPPER | 1 | $152.95 | |
| 7 | 1612-667 | COVER,EXP CHAMBER-LOWER | 1 | $140.95 | |
| 8 | 1612-785 | PACKING,EXP CHAMBER-LOWER | 1 | $13.95 | |
| 9 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 10 | 0630-145 | SENSOR,EXHAUST TEMP-1/4" DIA | 1 | $220.95 | |
| 11 | 1712-097 | MANIFOLD,EXHAUST-MACH | 1 | $196.95 | |
| 12 | 1612-014 | GASKET,EXHAUST HEADPIPE | 1 | $37.95 | |
| 13 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 14 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 15 | 0612-693 | GASKET,EXHAUST JOINT-RESONATOR | 1 | $29.95 | |
| 16 | 1712-090 | RESONATOR,EXHAUST-PTD BLK | 1 | $663.95 | |
| 17 | 1612-685 | MOUNT,RUBBER RESONATOR STANDOFF | 1 | $4.26 | |
| 18 | 0612-269 | SPRING,EXTENSION | 1 | $19.25 | |
| 19 | 1612-678 | BALL, 1 7/8" DIA-MANIFOLD MOUNT | 1 | $32.95 | |
| 21 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
