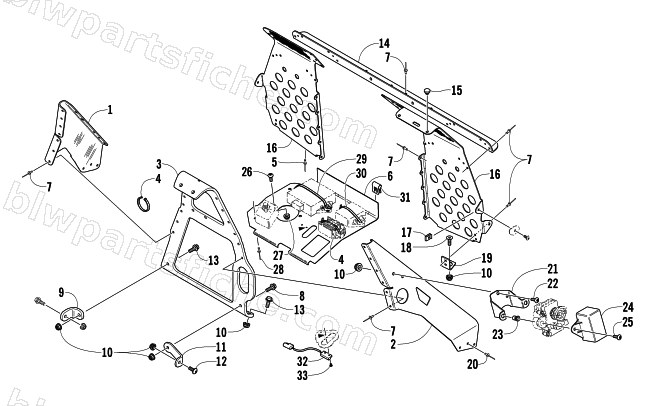

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — FOOTREST AND STEERING SUPPORT ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-914 | SUPPORT,STEERING-RH-PTD BLK | 1 | $92.95 | |
| 2 | 0707-915 | SUPPORT,STEERING-LH-PTD BLK | 1 | $92.95 | |
| 3 | 0707-912 | SUPPORT,STEERING-FRT-PTD BLK | 1 | $254.95 | |
| 4 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 5 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 6 | 3606-491 | PLATE,ELECTRICAL | 1 | $55.95 | |
| 7 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 8 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 9 | 3606-434 | SUPPORT,SIDE PLATE-RH | 1 | $5.95 | |
| 10 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 11 | 0607-779 | SUPPORT,SIDE PLATE-LH | 1 | $17.95 | |
| 12 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 13 | 8020-041 | SCREW,CAP-HFH 1/4-20 X 0.875 Z&Y | 1 | $6.47 | |
| 14 | 0707-919 | SUPPORT,FOOTREST-PTD BLK | 1 | $36.95 | |
| 15 | 3606-178 | BUMPER,RUBBER | 1 | $2.88 | |
| 16 | 2706-694 | FOOTREST,RH-PTD BLK | 1 | $110.95 | |
| 16 | 2706-695 | FOOTREST,LH-PTD BLK | 1 | $106.95 | |
| 17 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 18 | 0623-962 | SCREW,MACH HSFH 1/4-20X.75 Z&Y | 1 | $1.09 | |
| 19 | 2706-696 | SUPPORT,GUSSET-FOOTREST-PTD | 1 | $15.11 | |
| 20 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 21 | 3606-094 | PLATE,MTG-SERVO MOTOR | 1 | $58.95 | |
| 22 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 23 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 25 | 8017-584 | SCREW,MACH-TSTRH 1/4-20 X 1 1/4 GR2 Z&Y | 1 | $1.23 | |
| 26 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 27 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 29 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 30 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 31 | 0423-459 | CLIP,FENDER MOUNTING | 1 | $10.97 | |
| 32 | 0630-184 | SENSOR,SPEEDO-ASSY | 1 | $55.95 | |
| 33 | 0623-462 | SCREW,TAPTITE-PHPNH 6-32X1/4 W Z&C | 1 | $0.35 |
